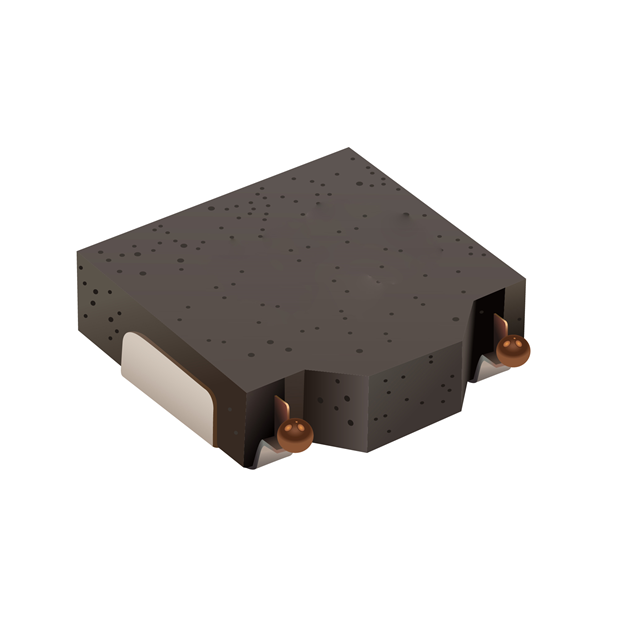

SRP0510-6R8K Real Image
Same model may have multiple batches, images only for reference.

SRP0510-6R8K

Part No SRP0510-6R8K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP0510-6R8K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0510
Package Tape & Reel
Product Status Last Time Buy
Material - Core Metal
Inductance 6.8 µH
Tolerance ±10%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 3A
Shielding Shielded
DC Resistance (DCR) 198mOhm Max
Q @ Freq 18 @ 7.96MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max) 0.039" (1.00mm)
Other Names 118-SRP0510-6R8KDKR,118-SRP0510-6R8KTR,118-SRP0510-6R8KCT
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274205-SRP0510-6R8K
Ultra Librarian 3D Model Ultra Librarian SRP0510-6R8K CAD Model

Description

The Bourns Inc. SRP0510-6R8K inductor is a shielded fixed inductor.

  • Inductance: 6.8 µH
  • Tolerance: ±10%
  • Q Rating: 18 @ 7.96MHz
  • DC Resistance (DCR): 198mOhm Max
  • Mounting: Surface mount technology (SMT)
  • Packaging: Tape and reel
  • Material: Metal core
  • Frequency Range: Self-resonant @ 16MHz
  • Height: 0.039" (1.00mm)
  • Dimension: 0.213" L x 0.201" W (5.40mm x 5.10mm)
  • Operating Temperature: -40°C ~ 125°C
