Same model may have multiple batches, images only for reference.

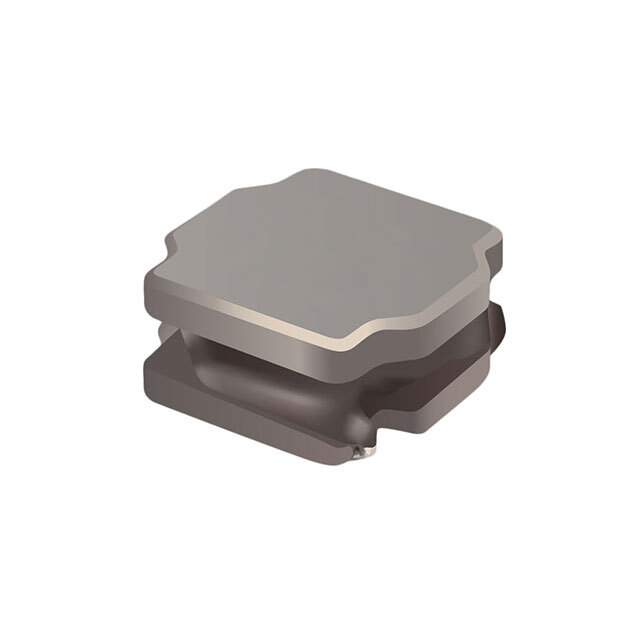

SRN8040TA-820M Real Image
Same model may have multiple batches, images only for reference.

SRN8040TA-820M

Part No SRN8040TA-820M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN8040TA-820M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN8040TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 µH
Tolerance ±20%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 1.6A
Shielding Semi-Shielded
DC Resistance (DCR) 230mOhm
Q @ Freq 12 @ 1MHz
Frequency - Self Resonant 8.5MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRN8040TA
Other Names SRN8040TA-820MTR,SRN8040TA-820MCT,SRN8040TA-820MDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274252-SRN8040TA-820M
Ultra Librarian 3D Model Ultra Librarian SRN8040TA-820M CAD Model

Description

The Bourns Inc. SRN8040TA-820M is a fixed inductor with an inductance of 82 µH.

  • Mounting Type: Surface Mount
  • Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Tolerance: ±20%
  • Q @ Freq: 12 @ 1MHz
  • AEC-Q200: Rated
  • Standard Package: 1,000
  • Applications: Automotive and industrial
