Same model may have multiple batches, images only for reference.

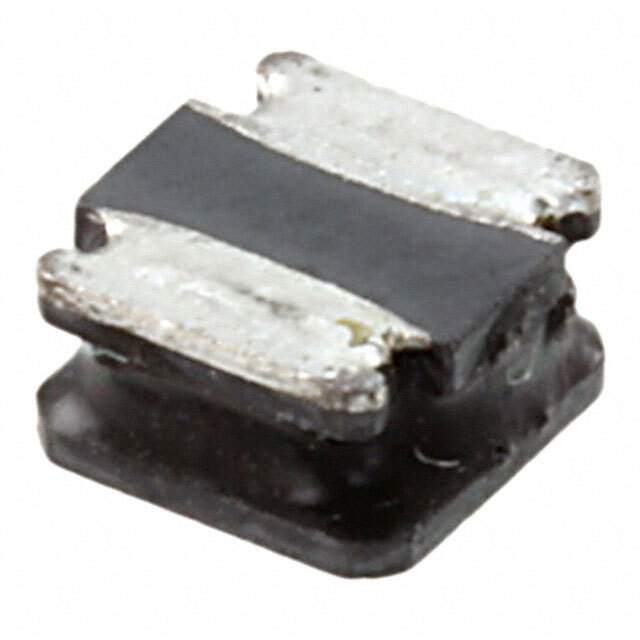

SRN4026-220M Real Image
Same model may have multiple batches, images only for reference.

SRN4026-220M

Part No SRN4026-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4026-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4026
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 670 mA
Current - Saturation (Isat) 670mA
Shielding Semi-Shielded
DC Resistance (DCR) 234mOhm Max
Q @ Freq 11 @ 2.52MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.098" (2.50mm)
Base Product Number SRN4026
Other Names SRN4026-220MTR,SRN4026-220MCT,SRN4026-220MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274323-SRN4026-220M
Ultra Librarian 3D Model Ultra Librarian SRN4026-220M CAD Model

Description

The SRN4026-220M is a fixed inductor from Bourns Inc. that has a semi-shielded package of tape and reel.

  • Core Material: Ferrite
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Q @ Freq: 11 @ 2.52MHz
  • Frequency Self-Resonant: 16MHz
  • DC Resistance (DCR): 234mOhm max
  • Current Rating: 670mA
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C ~ 125°C
  • Dimensions: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
