Same model may have multiple batches, images only for reference.

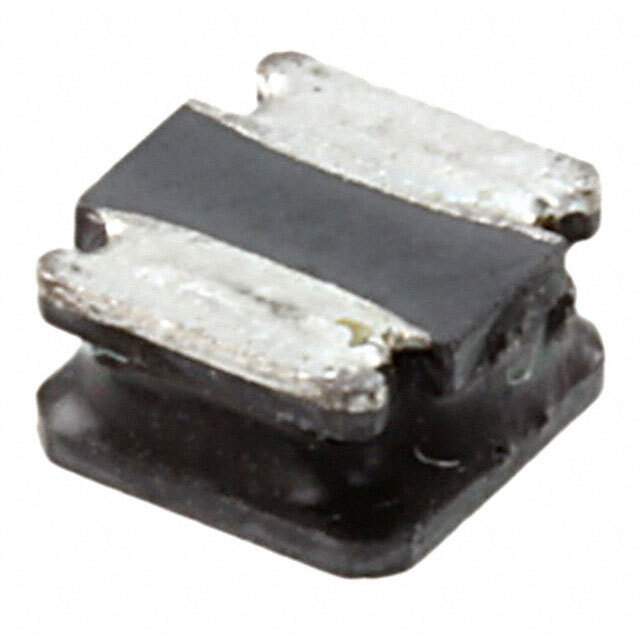

SRN4026-150M Real Image
Same model may have multiple batches, images only for reference.

SRN4026-150M

Part No SRN4026-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4026-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4026
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 770 mA
Current - Saturation (Isat) 770mA
Shielding Semi-Shielded
DC Resistance (DCR) 144mOhm Max
Q @ Freq 11 @ 2.52MHz
Frequency - Self Resonant 21MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.098" (2.50mm)
Base Product Number SRN4026
Other Names SRN4026-150MTR,SRN4026-150MDKR,2266-SRN4026-150M,SRN4026-150MCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274325-SRN4026-150M
Ultra Librarian 3D Model Ultra Librarian SRN4026-150M CAD Model

Description

The SRN4026-150M is a drum core, wirewound type inductor from Bourns Inc.

  • Inductance: 15 μH
  • Tolerance: ±20%
  • DC Resistance: 144mOhm Max
  • Current: 770 mA
  • Q @ Freq: 11 @ 2.52MHz
  • Frequency Self-Resonant: 21MHz
  • Mounting: SMD (SMT)
  • Package/Case: Non-standard
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
