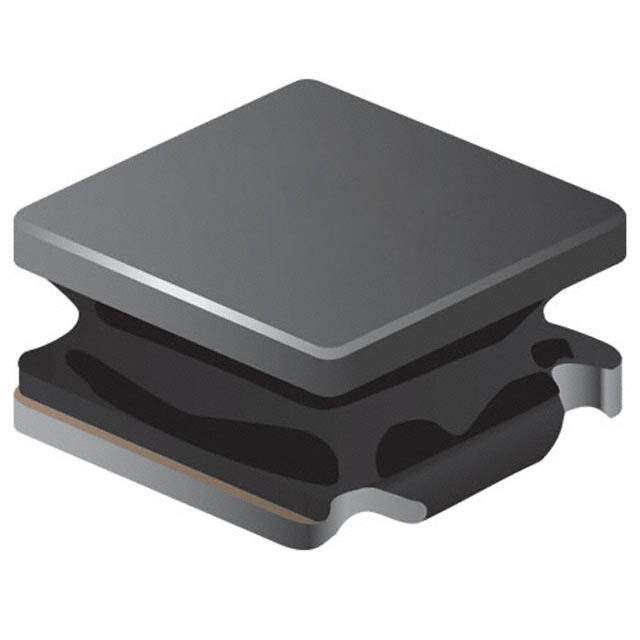

SRN3015-101M Real Image
Same model may have multiple batches, images only for reference.

SRN3015-101M

Part No SRN3015-101M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN3015-101M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3015
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 290 mA
Current - Saturation (Isat) 270mA
Shielding Semi-Shielded
DC Resistance (DCR) 2.92Ohm Max
Q @ Freq 27 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number SRN3015
Other Names SRN3015101M,SRN3015-101MCT,SRN3015-101MTR,SRN3015-101MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274378-SRN3015-101M
Ultra Librarian 3D Model Ultra Librarian SRN3015-101M CAD Model

Description

The SRN3015-101M is a fixed inductor with an inductance of 100μH and a tolerance of ±20%.

  • Type: Drum core, wirewound
  • Package: Semi-shielded
  • Q @ Freq: 27 @ 2.52MHz
  • Self-Resonant Frequency: 11MHz
  • DC Resistance: 2.92 ohms max
  • Current Rating: 290mA
  • Dimensions: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
