Same model may have multiple batches, images only for reference.

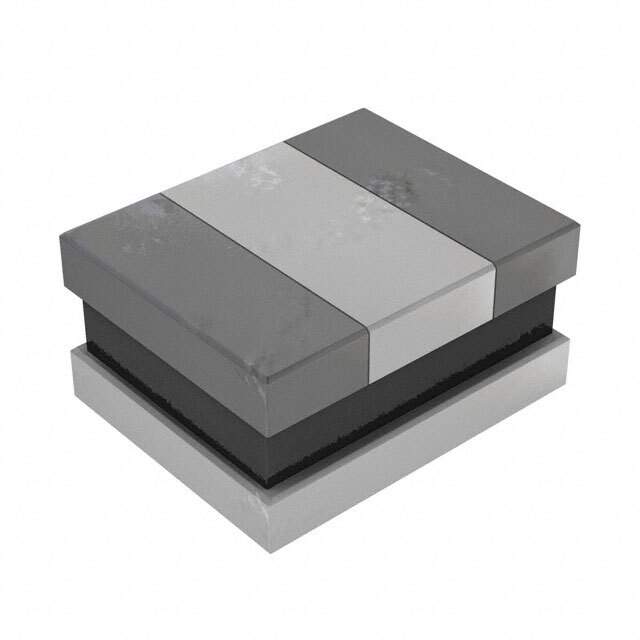

SRN2510-R47M Real Image
Same model may have multiple batches, images only for reference.

SRN2510-R47M

Part No SRN2510-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2510-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2510
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 3.2A
Shielding Semi-Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 8 @ 1MHz
Frequency - Self Resonant 200MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.040" (1.02mm)
Base Product Number SRN2510
Other Names SRN2510-R47MDKR,2266-SRN2510-R47M,SRN2510-R47MCT,SRN2510-R47MTR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274409-SRN2510-R47M
Ultra Librarian 3D Model Ultra Librarian SRN2510-R47M CAD Model

Description

The SRN2510 series inductor is a drum core, wirewound type of inductor with a semi-shielded package.

  • Inductance: 470nH
  • Tolerance: ±20%
  • Maximum Height: 0.040" (1.02mm)
  • DC Resistance (DCR): 42mOhm
  • Core Material: Ferrite
  • Q @ Freq: 8 @ 1MHz
  • Frequency of Self-Resonant: 200MHz
  • Package/Case: 1008 (2520 Metric)
  • Current Rating: 3.1A
  • Operating Temperature Range: -55°C ~ 125°C
  • Manufacturer: Bourns Inc.
