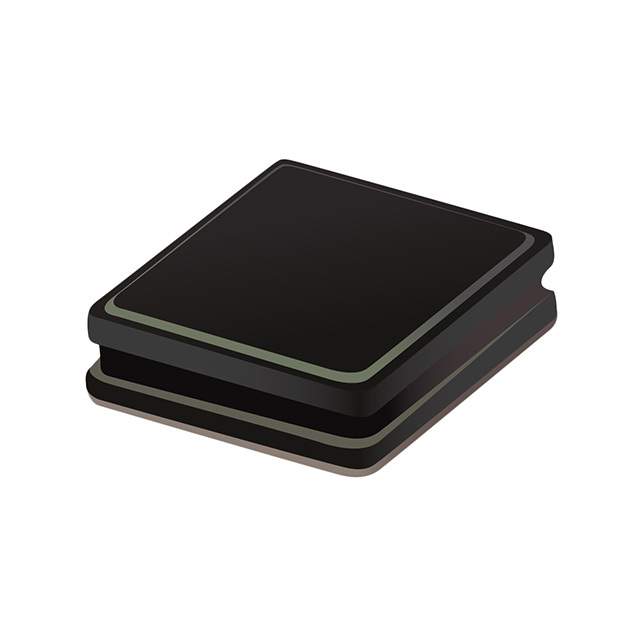

SRN2508A-R47M Real Image
Same model may have multiple batches, images only for reference.

SRN2508A-R47M

Part No SRN2508A-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2508A-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2508A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 1.45 A
Current - Saturation (Isat) 2.5A
Shielding Semi-Shielded
DC Resistance (DCR) 80mOhm
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 340MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Base Product Number SRN2508A
Other Names SRN2508A-R47MCT,SRN2508A-R47MTR,SRN2508A-R47MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274413-SRN2508A-R47M
Ultra Librarian 3D Model Ultra Librarian SRN2508A-R47M CAD Model

Description

The Bourns SRN2508A-R47M is a fixed inductor that is used in various electronic devices.

  • Inductance: 470nH
  • Tolerance: ±20%
  • Package Size: Tape & reel
  • Shielding: Semi-shielded
  • Temperature Range: -55°C to 125°C
  • Current Rating: 1.45A
  • Inductance Frequency Test: 1MHz
