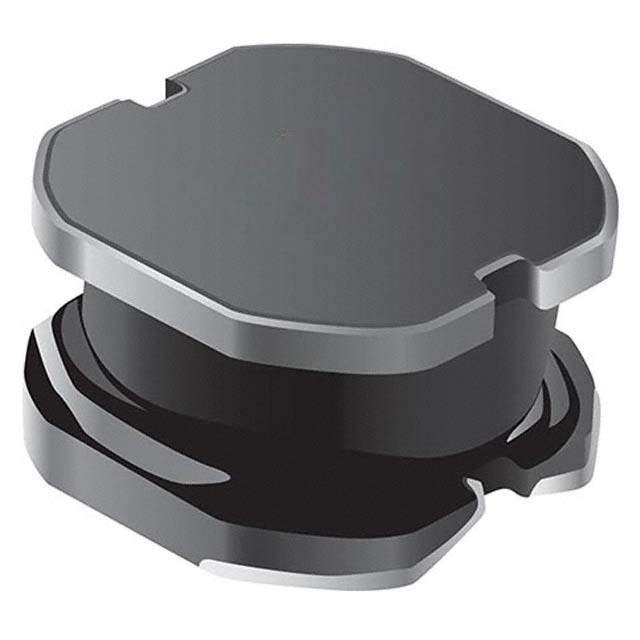

SRN1060-471M Real Image
Same model may have multiple batches, images only for reference.

SRN1060-471M

Part No SRN1060-471M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN1060-471M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN1060
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±20%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 800mA
Shielding Semi-Shielded
DC Resistance (DCR) 950mOhm Max
Q @ Freq 13 @ 796kHz
Frequency - Self Resonant 2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.386" W (10.00mm x 9.80mm)
Height - Seated (Max) 0.236" (6.00mm)
Base Product Number SRN1060
Other Names SRN1060-471MCT,SRN1060-471MTR,SRN1060471M,SRN1060-471MDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274446-SRN1060-471M
Ultra Librarian 3D Model Ultra Librarian SRN1060-471M CAD Model

Description

The SRN1060 series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape and reel package.

  • Shielding: semi-shielded
  • Inductance: 470 µH
  • Tolerance: ±20%
  • Core Material: ferrite
  • Q factor: 13 @ 796 kHz
  • Self-Resonant Frequency: 2 MHz
  • Maximum DC Resistance (DCR): 950 mOhm
  • Current Rating: 800 mA
  • Applications: power supplies, DC/DC converters, and filtering circuits
  • Operating Temperature Range: -40°C to 125°C
