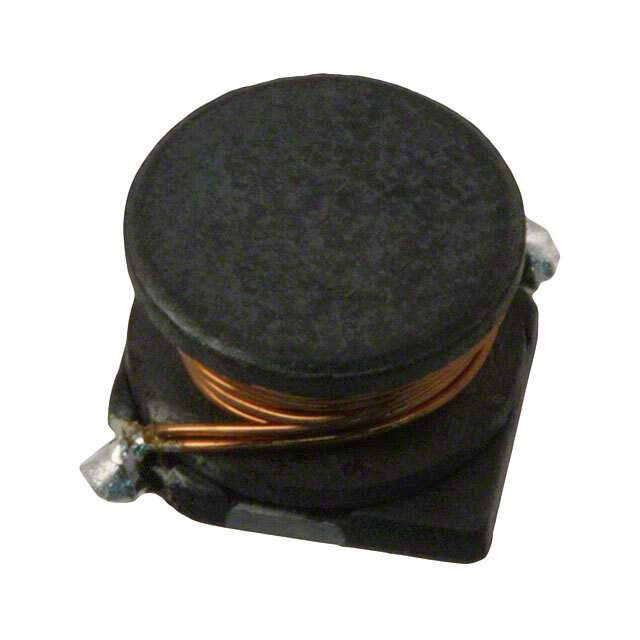

SDR7045-680K Real Image
Same model may have multiple batches, images only for reference.

SDR7045-680K

Part No SDR7045-680K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7045-680K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±10%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 920mA
Shielding Unshielded
DC Resistance (DCR) 280mOhm Max
Q @ Freq 17 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR7045
Other Names SDR7045-680KCT,SDR7045-680K,SDR7045680K,SDR7045-680KTR,SDR7045-680KDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274481-SDR7045-680K
Ultra Librarian 3D Model Ultra Librarian SDR7045-680K CAD Model

Description

The Bourns SDR7045-680K is a drum core, wirewound fixed inductor with an inductance of 68µH and a tolerance of ±10%.

  • Manufacturer: Bourns
  • Type: drum core, wirewound fixed inductor
  • Inductance: 68µH
  • Tolerance: ±10%
  • DC Resistance: 280mOhm Max
  • Saturation Current Rating: 920mA
  • Q @ Freq: 17 @ 2.52MHz
  • Self-Resonant Frequency: 11MHz
  • Package: tape and reel
  • Shielding: unshielded
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
