Same model may have multiple batches, images only for reference.

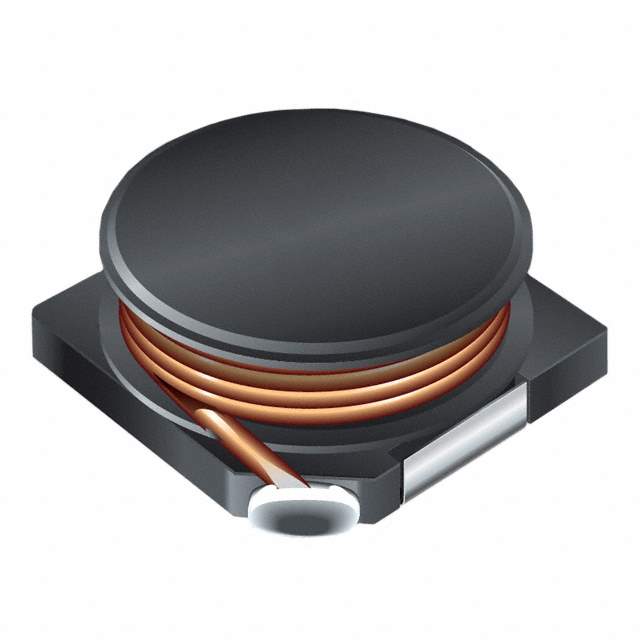

SDR7030-4R7M Real Image
Same model may have multiple batches, images only for reference.

SDR7030-4R7M

Part No SDR7030-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7030-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7030
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.85 A
Current - Saturation (Isat) 2.25A
Shielding Unshielded
DC Resistance (DCR) 48mOhm Max
Q @ Freq 14 @ 7.96MHz
Frequency - Self Resonant 43MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR7030
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274489-SDR7030-4R7M
Ultra Librarian 3D Model Ultra Librarian SDR7030-4R7M CAD Model

Description

The SDR7030 series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape and reel package.

  • Manufacturer: Bourns Inc.
  • Series: SDR7030
  • Type: drum core, wirewound inductor
  • Package: tape and reel
  • Shielding: unshielded
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Core Material: ferrite core material
  • Q factor: 14 @ 7.96 MHz
  • Self-Resonant Frequency: 43 MHz
  • DC Resistance (DCR): 48 mOhm Max
  • Current Rating: 1.85 A
  • Temperature Range: -40°C to 125°C
