Same model may have multiple batches, images only for reference.

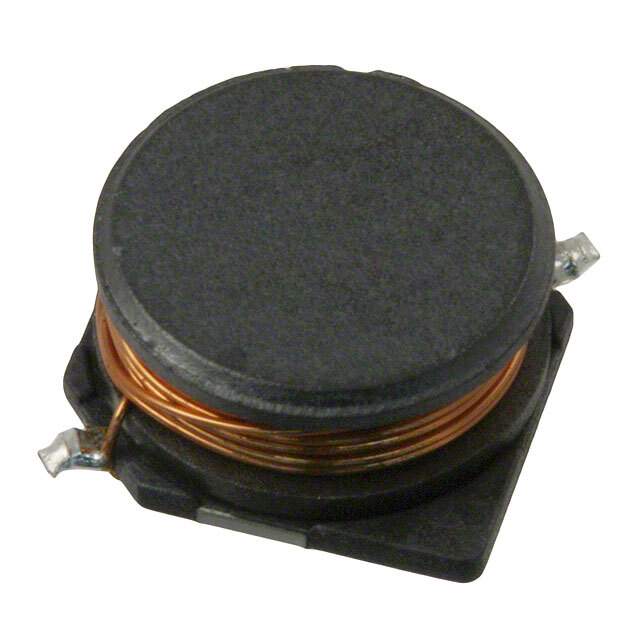

SDR1045-6R8M Real Image
Same model may have multiple batches, images only for reference.

SDR1045-6R8M

Part No SDR1045-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1045-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1045
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 4.2A
Shielding Unshielded
DC Resistance (DCR) 40mOhm Max
Q @ Freq 22 @ 7.96MHz
Frequency - Self Resonant 35.8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR1045
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274615-SDR1045-6R8M
Ultra Librarian 3D Model Ultra Librarian SDR1045-6R8M CAD Model

Description

The SDR1045 series of inductors from Bourns Inc. are drum core, wirewound inductors designed for use in a variety of applications.

  • Shielding: Unshielded
  • Core Material: Ferrite
  • Inductance: 6.8 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 40mOhm Max
  • Current Rating: 3.5A
  • Height: 0.189" (4.80mm)
  • Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Frequency Self-Resonant: 35.8MHz
  • Q @ Freq: 22 @ 7.96MHz
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C ~ 125°C
