Same model may have multiple batches, images only for reference.

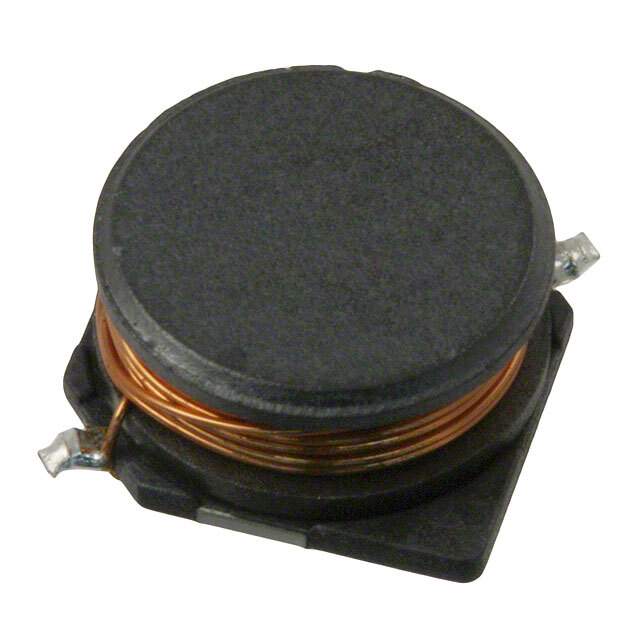

SDR1045-471K Real Image
Same model may have multiple batches, images only for reference.

SDR1045-471K

Part No SDR1045-471K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1045-471K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1045
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 520 mA
Current - Saturation (Isat) 580mA
Shielding Unshielded
DC Resistance (DCR) 2.25Ohm Max
Q @ Freq 12 @ 796kHz
Frequency - Self Resonant 4.2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR1045
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274616-SDR1045-471K
Ultra Librarian 3D Model Ultra Librarian SDR1045-471K CAD Model

Description

The SDR1045-471K is a fixed inductor belonging to the SDR1045 series.

  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Inductance: 470 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 2.25 Ohm Max
  • Current Rating: 520 mA
  • Q @ Freq: 12 @ 796kHz
  • Frequency Self-Resonant: 4.2MHz
  • Packaging: Tape and reel (TR)
  • Height: 0.189" (4.80mm)
  • Mounting: SMD (SMT)
  • Package/Case: Nonstandard
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Bourns Inc.
  • Market: Open Market
