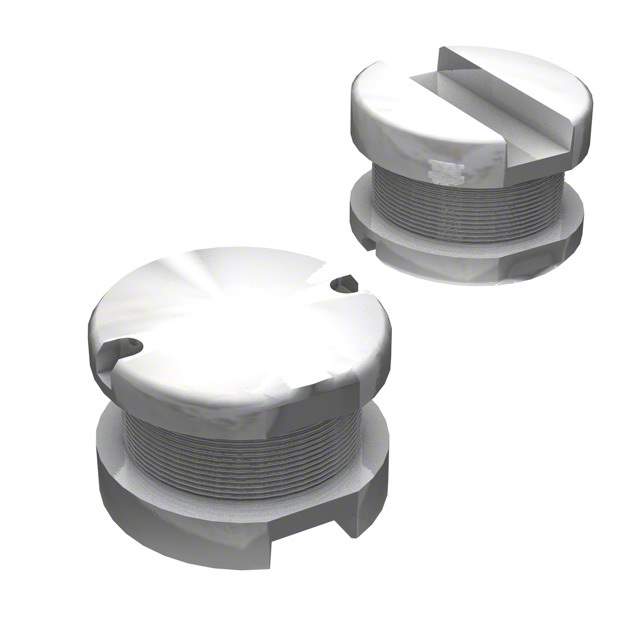

SDR0805-472KL Real Image
Same model may have multiple batches, images only for reference.

SDR0805-472KL

Part No SDR0805-472KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0805-472KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 mH
Tolerance ±10%
Current Rating (Amps) 80 mA
Current - Saturation (Isat) 150mA
Shielding Unshielded
DC Resistance (DCR) 21Ohm Max
Q @ Freq 30 @ 252kHz
Frequency - Self Resonant 1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number SDR0805
Other Names SDR0805-472KL,SDR0805-472KLCT,SDR0805472KL,SDR0805-472KLDKR,SDR0805-472KLTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274715-SDR0805-472KL
Ultra Librarian 3D Model Ultra Librarian SDR0805-472KL CAD Model

Description

The SDR0805 series of inductors from Bourns Inc. are drum core, wirewound inductors designed for use in a variety of applications.

  • Shielding: Unshielded
  • Core Material: Ferrite
  • Inductance: 4.7 mH
  • Tolerance: ±10%
  • DC Resistance (DCR): 21Ohm Max
  • Current Rating: 80mA
  • Height Seated: 0.209" (5.30mm)
  • Dimension: 0.307" L x 0.307" W (7.80mm x 7.80mm)
  • Frequency Self-Resonant: 1MHz
  • Q @ Freq: 30 @ 252kHz
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C ~ 125°C
