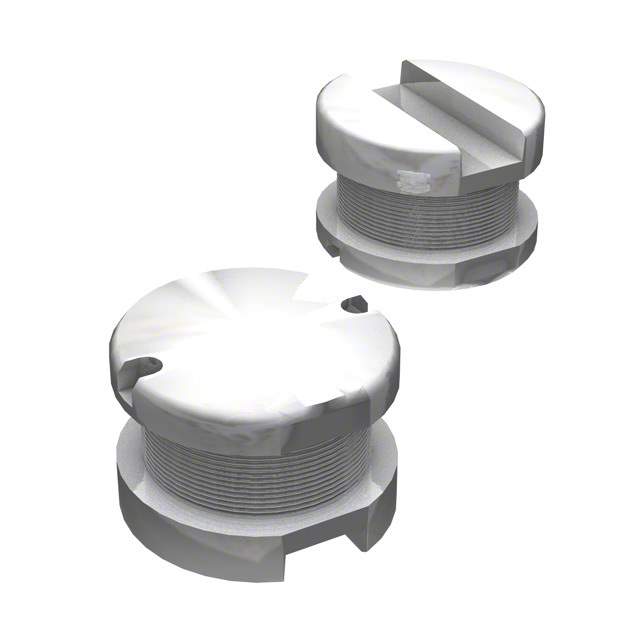

SDR0603-390KL Real Image
Same model may have multiple batches, images only for reference.

SDR0603-390KL

Part No SDR0603-390KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0603-390KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0603
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 39 µH
Tolerance ±10%
Current Rating (Amps) 560 mA
Current - Saturation (Isat) 660mA
Shielding Unshielded
DC Resistance (DCR) 460mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.154" (3.90mm)
Base Product Number SDR0603
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274759-SDR0603-390KL
Ultra Librarian 3D Model Ultra Librarian SDR0603-390KL CAD Model

Description

The Bourns Inc. SDR0603-390KL is a fixed inductor.

  • Series: SDR0603
  • Type: Drum core, wirewound
  • Package: Tape & Reel (TR)
  • Shielding: Unshielded
  • Inductance: 39 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 22 @ 2.52MHz
  • Frequency - Self Resonant: 13MHz
  • DC Resistance (DCR): 460mOhm Max
  • Current Rating (amps): 560 mA
  • Inductance Frequency - Test: 1 kHz
  • Height - Seated (max): 0.154" (3.90mm)
  • Standard Package: 400 units
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Package: Nonstandard
