Same model may have multiple batches, images only for reference.

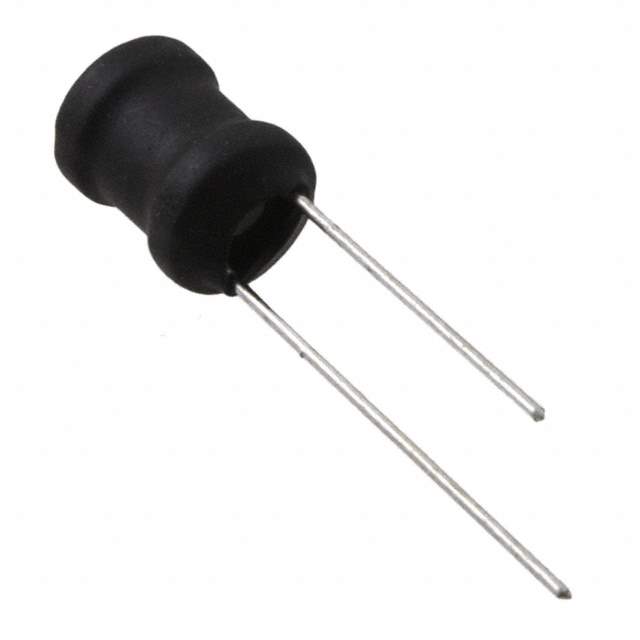

RLB9012-471KL Real Image
Same model may have multiple batches, images only for reference.

RLB9012-471KL

Part No RLB9012-471KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 470UH 680MA 1.1 OHM TH / 470 µH Unshielded Drum Core, Wirewound Inductor 680 mA 1.1Ohm Max Radial, Vertical Cylinder
Datasheet
RLB9012-471KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 680 mA
Shielding Unshielded
DC Resistance (DCR) 1.1Ohm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 1.9MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Base Product Number RLB9012
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number RLB9012471KL
Standard Package 200
Win Source Part Number 1327740-RLB9012-471KL
Ultra Librarian 3D Model Ultra Librarian RLB9012-471KL CAD Model

Description

The RLB9012-471KL is a fixed inductor from Bourns Inc.

  • Type: drum core, wirewound
  • Shielding: unshielded
  • Package: radial, vertical cylinder
  • Mounting: through hole
  • Inductance: 470 µH
  • Tolerance: ±10%
  • Material Core: ferrite
  • Q @ Freq: 20 @ 796kHz
  • Frequency Self-Resonant: 1.9MHz
  • DC Resistance (DCR): 1.1Ohm Max
  • Current Rating (Amps): 680 mA
  • Inductance Frequency-Test: 1 kHz
  • ROHS3 Compliant: Yes
  • REACH: not affected by REACH
