Same model may have multiple batches, images only for reference.

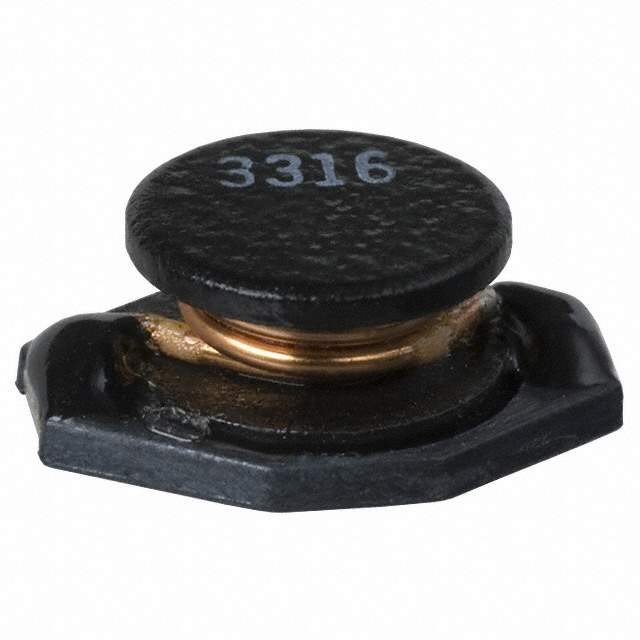

PM3316-681M-RC Real Image
Same model may have multiple batches, images only for reference.

PM3316-681M-RC

Part No PM3316-681M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 680UH 350MA 2.6OHM SMD / 680 µH Unshielded Drum Core, Wirewound Inductor 350 mA 2.6Ohm Nonstandard
Datasheet
PM3316-681M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±20%
Current Rating (Amps) 350 mA
Current - Saturation (Isat) 400mA
Shielding Unshielded
DC Resistance (DCR) 2.6Ohm
Q @ Freq 57 @ 50kHz
Frequency - Self Resonant 3MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number PM3316
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number -M8574TR,-M8574CT,M8574TR,M8574CT,PM3316681MRC,M8574DKR
Standard Package 500
Win Source Part Number 1327992-PM3316-681M-RC
Ultra Librarian 3D Model Ultra Librarian PM3316-681M-RC CAD Model

Description

The PM3316-681M-RC is a fixed inductor manufactured by Bourns Inc.

  • Design: Drum Core, Wirewound
  • Inductance: 680μH
  • Inductance Tolerance: ±20%
  • Maximum Current Rating: 350mA
  • Saturation Current: 400mA
  • Height: 0.209" (5.30mm)
  • Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)
  • Packaging: Surface Mount
  • Operating Temperature Range: -55°C ~ 125°C
  • Series: PM3316
  • ROHS3 Compliant: Yes
