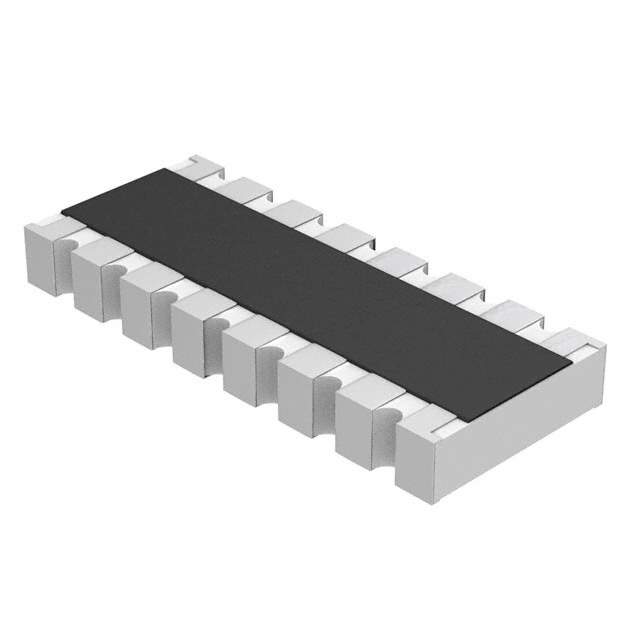

The Bourns Inc. CAY16-330J8LF is a resistor network array that is part of the CAY16 series. Bold the product name (e.g., BAV99S,135 → CAY16-330J8LF) and manufacturer (e.g., Nexperia USA Inc. → Bourns Inc.).

• Packaging: Tape & Reel
• Standard Package: 5,000
• Size / Dimension: 0.150" L x 0.063" W (3.80mm x 1.60mm)
• Height - Seated (Max): 0.024" (0.60mm)
• Tolerance: ±5%
• Temperature Coefficient: ±200ppm/°C
• Resistance: 33 Ohms
• Circuit Type: Isolated
• Number of Resistors: 8
• Number of Pins: 16
• Power per Element: 62.5mW
• Mounting Type: Surface Mount
• Package / Case: 1506, Convex, Long Side Terminals
• Supplier Device Package: 1506
• Operating Temperature: -55°C ~ 125°C
• MSL Level: 1 (Unlimited)
• HTSUS: 8533.21.0020
• Status: Obsolete
• California Prop 65: Warning Information
