Same model may have multiple batches, images only for reference.

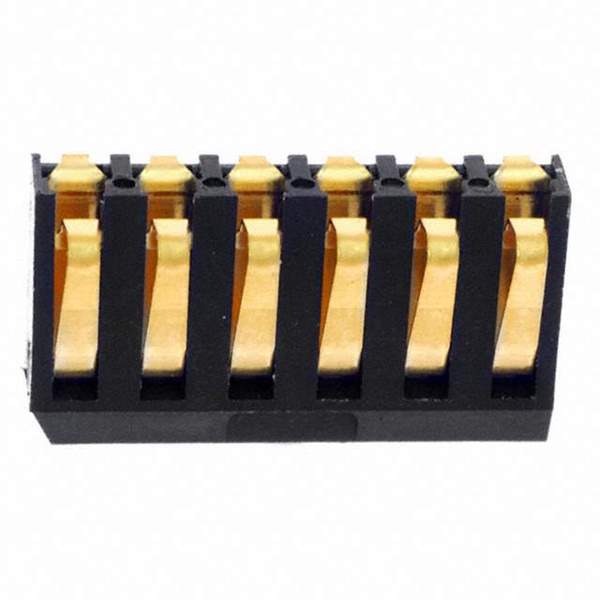

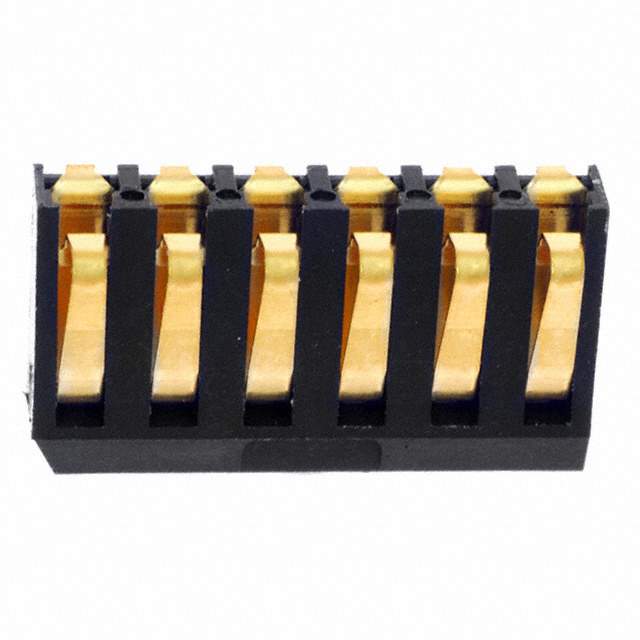

70AAJ-6-M0

Name: 70AAJ-6-M0
Brand: Bourns Inc.
SKU: 1224192
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	70AAJ-6-M0
Manufacturer	Bourns Inc.
Catalog	Rectangular Connectors
Description	CONN SPRING MOD MALE 6POS SMD / 6 Position Spring Compression Contact, Male Connector Surface Mount
Datasheet	70AAJ-6-M0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Spring Loaded
Mfr	Bourns Inc.
Series	70AA
Package	Tube
Connector Type	Compression Contact, Male
Number of Contacts	6
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting	SMD (SMT)
Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Base Product Number	70AAJ
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	70AAJ6M0
Standard Package	20
Win Source Part Number	1224192-70AAJ-6-M0
Ultra Librarian 3D Model	Ultra Librarian 70AAJ-6-M0 CAD Model

Alternative Products

Description

The 1224192-70AAJ-6-M0 is a rectangular connector component designed for spring-loaded connectors.

Pitch: 0.100" (2.54mm)
Connector Type: Compression Contact, Male
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Package: Tube
Contacts: 6
