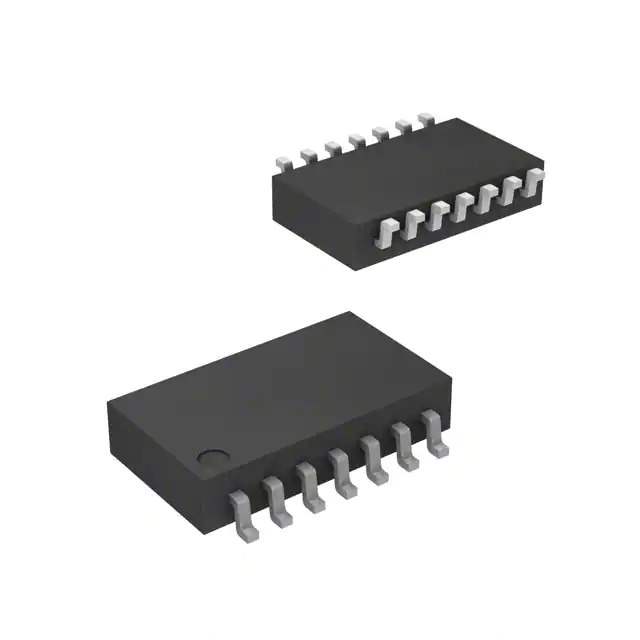

4814P-T01-101LF Real Image
Same model may have multiple batches, images only for reference.

4814P-T01-101LF

Part No 4814P-T01-101LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 7 RES 100 OHM 14SOIC
Datasheet
4814P-T01-101LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4800P
Package Tube
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 100
Tolerance ±2%
Number of Resistors 7
Number of Pins 14
Power Per Element 160mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Type Surface Mount
Package / Case 14-SOIC (0.220", 5.59mm Width)
Supplier Device Package 14-SOM
Size / Dimension 0.390" L x 0.220" W (9.91mm x 5.59mm)
Height - Seated (Max) 0.094" (2.40mm)
Base Product Number 4814P
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0010
California Prop 65 Warning Information
Win Source Part Number 856154-4814P-T01-101LF
Ultra Librarian 3D Model Ultra Librarian 4814P-T01-101LF CAD Model

Description

The 856154-4814P-T01-101LF is a resistor network array from Bourns Inc.

  • Series: 4800P
  • Application: Automotive
  • AEC-Q200: Yes
  • Mounting Type: Surface Mount
  • Size: 0.390" L x 0.220" W (9.91mm x 5.59mm)
  • Height: 0.094" (2.40mm)
  • Package Type: 14-SOIC (0.220", 5.59mm Width)
  • Pins: 14
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 100 Ohms
  • Circuit Type: Isolated
  • Resistors: 7
  • Power per Element: 160mW
  • Operating Temperature: -55°C to 125°C
  • REACH: Unaffected
  • Prop 65: Compliant
  • Standard Package: 50 pcs
  • Product Status: Active
