Same model may have multiple batches, images only for reference.

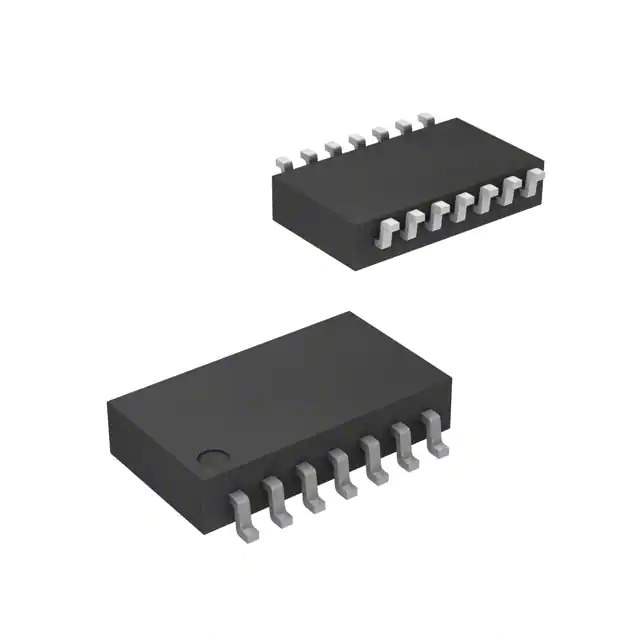

4814P-1-331LF Real Image
Same model may have multiple batches, images only for reference.

4814P-1-331LF

Part No 4814P-1-331LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 7 RES 330 OHM 14SOIC / 330 Ohm ±2% 160mW Power Per Element Isolated 7 Resistor Network/Array ±100ppm/°C 14-SOIC (0.220", 5.59mm Width)
Datasheet
4814P-1-331LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4800P
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 330
Tolerance ±2%
Number of Resistors 7
Number of Pins 14
Power Per Element 160mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Type Surface Mount
Package / Case 14-SOIC (0.220", 5.59mm Width)
Supplier Device Package 14-SOM
Size / Dimension 0.390" L x 0.220" W (9.91mm x 5.59mm)
Height - Seated (Max) 0.094" (2.40mm)
Base Product Number 4814P
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0010
California Prop 65 Warning Information
Win Source Part Number 856152-4814P-1-331LF
Ultra Librarian 3D Model Ultra Librarian 4814P-1-331LF CAD Model

Description

The 856152-4814P-1-331LF is a resistor network array from Bourns Inc.

  • Series: 4800P
  • Resistance: 330 ohms
  • Tolerance: ±2%
  • Mounting Type: Surface Mount
  • Package: 14-SOIC (0.220", 5.59mm Width)
  • Size/Dimension: 0.390" L x 0.220" W (9.91mm x 5.59mm)
  • Circuit Type: Isolated
  • Resistors: 7
  • Pins: 14
  • Power per Element: 160mW
  • Application: Automotive
  • AEC-Q200: Yes
  • Product Status: Active
  • Prop 65 Compliant: Yes
