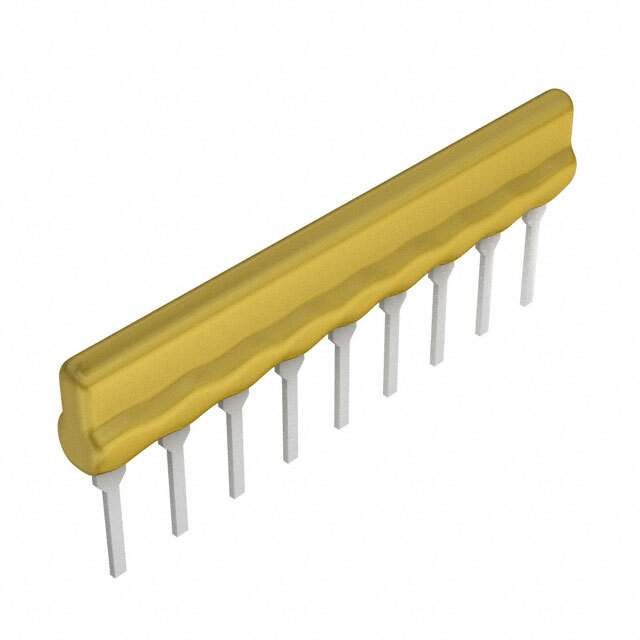

4609X-101-272LF Real Image
Same model may have multiple batches, images only for reference.

4609X-101-272LF

Part No 4609X-101-272LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 2.7K OHM 9SIP
Datasheet
4609X-101-272LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Bourns Inc.
Series 4600X
Packaging Bulk
Circuit Type Bussed
Resistance (Ohms) 2.7k
Tolerance ±2%
Number of Resistors 8
Number of Pins 9
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package 9-SIP
Manufacturer Package 9-SIP
Dimension 0.898" L x 0.098" W (22.81mm x 2.49mm)
Height - Seated (Maximum) 0.200" (5.08mm)
Win Source Part Number 763684-4609X-101-272LF
Family Name 4600X
Introduction Date June 13, 2000
ECCN EAR99
Country of Origin China, Taiwan
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 4609X-101-272LF CAD Model

Description

The Bourns Inc. 763684-4609X-101-272LF is a bussed resistor array with eight resistors and a resistance of 2.7k ohms.

  • Package: Packaged in a 9-SIP package.
  • Mounting: Mounted through the hole.
  • Tolerance: ±2%.
  • Temperature Coefficient: ±100ppm/°C.
  • Power per Element: 200mW.
  • Dimension: 0.898 inches in length and 0.098 inches in width.
  • Applications: Resistors, industrial, consumer electronics, portable devices, and power management.
