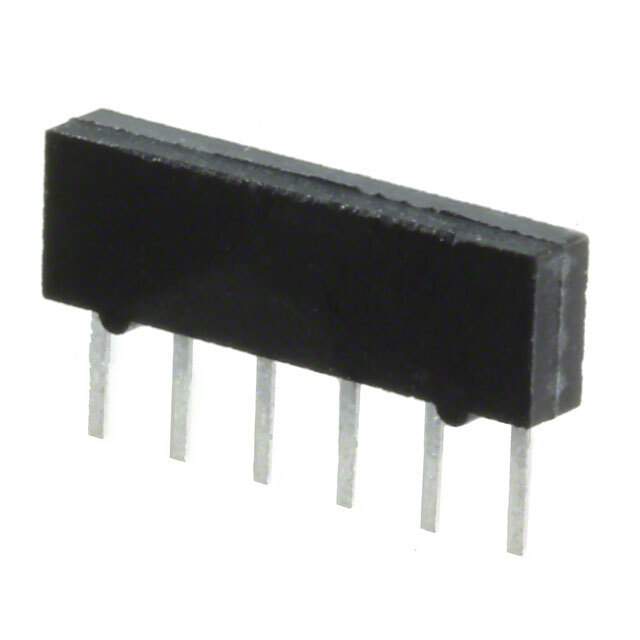

4306R-101-221LF Real Image
Same model may have multiple batches, images only for reference.

4306R-101-221LF

Part No 4306R-101-221LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 5 RES 220 OHM 6SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Bulk
Circuit Type Bussed
Resistance (Ohms) 220
Tolerance ±2%
Number of Resistors 5
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 6
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package 6-SIP
Supplier Device Package 6-SIP
Dimension 0.584" L x 0.085" W (14.83mm x 2.16mm)
Height - Seated (Maximum) 0.195" (4.95mm)
Part Number Series 4306R
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808255-4306R-101-221LF
Ultra Librarian 3D Model Ultra Librarian 4306R-101-221LF CAD Model

Description

The Bourns Inc. 4306R-101-221LF is a bussed circuit type resistor.

  • Resistance: 220 ohms
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Power per Element: 200mW
  • Package: 6-SIP
  • Mounting Style: Through Hole
  • Resistors: 5
  • Pins: 6
  • Packaging: Bulk
  • Dimension: 0.584" L x 0.085" W (14.83mm x 2.16mm)
  • Height: 0.195" (4.95mm)
  • Series: 4306R
  • Family Name: SRR1260
  • Supply & Demand: Balanced
  • Manufacturer Pack Quantity: 35
  • MSL Level: Unlimited
  • Resistor-Ratio-Drift: 50ppm/°C
