Same model may have multiple batches, images only for reference.

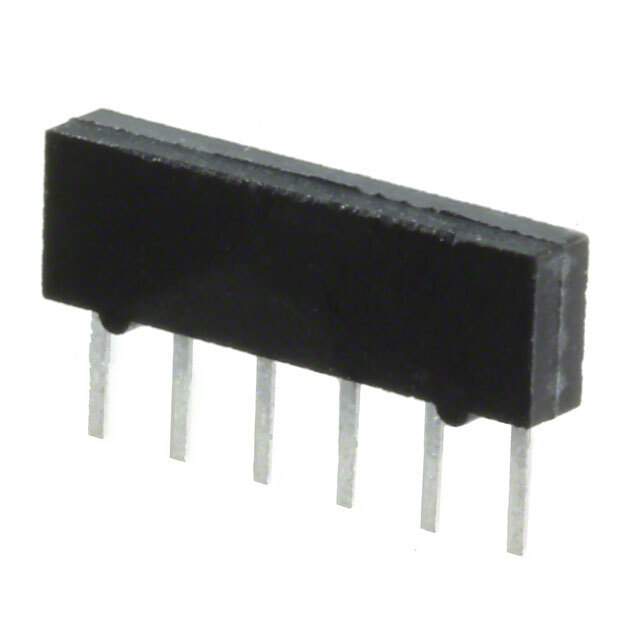

4306R-101-104LF Real Image
Same model may have multiple batches, images only for reference.

4306R-101-104LF

Part No 4306R-101-104LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 5 RES 100K OHM 6SIP  /  100k Ohm ±2% 200mW Power Per Element Bussed 5 Resistor Network/Array ±100ppm/°C 6-SIP
Datasheet
4306R-101-104LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4300R
Package Tube
Circuit Type Bussed
Resistance (Ohms) 100k
Tolerance ±2%
Number of Resistors 5
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 6
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-SIP
Supplier Device Package 6-SIP
Dimension 0.584" L x 0.085" W (14.83mm x 2.16mm)
Height - Seated (Max) 0.195" (4.95mm)
Base Product Number 4306R
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0050
Other Names 4306R-1-104LF,4306R-101-104LF-ND,4306R101104LF
Standard Package 35
Win Source Part Number 1003156-4306R-101-104LF
Ultra Librarian 3D Model Ultra Librarian 4306R-101-104LF CAD Model

Description

The 4306R-101-104LF is a resistor network/array from Bourns Inc.

  • Win Source Part Number: 1003156-4306R-101-104LF
  • Series: 4300R
  • Resistance: 100k ohms
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Power per Element: 200mW
  • Height (seated): 0.195" (4.95mm)
  • Mounting Type: Through-hole
  • Package/Case: 6-SIP
  • Operating Temperature Range: -55°C to 125°C
