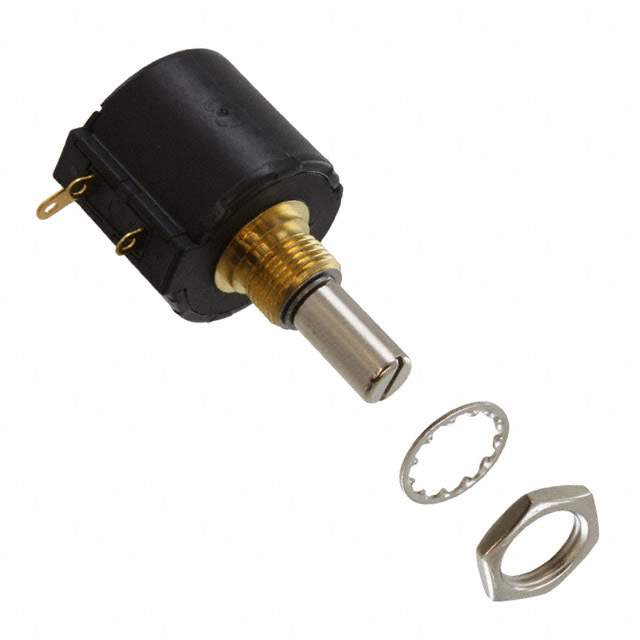

3549S-1AG-103A Real Image
Same model may have multiple batches, images only for reference.

3549S-1AG-103A

Part No 3549S-1AG-103A
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description POT 10K OHM 2W WIREWOUND LINEAR / 10k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Lug
Datasheet
3549S-1AG-103A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr Bourns Inc.
Series 3549
Package Tray
Resistance (Ohms) 10k
Tolerance ±3%
Power (Watts) 2W
Built in Switch None
Number of Turns 10
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±50ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.813" (20.64mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread 3/8-32
Mounting Type Panel Mount
Size - Body Round - 0.885" Dia (22.48mm)
Base Product Number 3549S
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.31.0000
Standard Package 5
Win Source Part Number 1089695-3549S-1AG-103A
Ultra Librarian 3D Model Ultra Librarian 3549S-1AG-103A CAD Model

Description

The 3549S series rotary potentiometer from Bourns Inc. is a user-defined adjustment type with a linear taper and 10k ohm resistance.

  • Manufacturer: Bourns Inc.
  • Series: 3549S
  • Adjustment Type: User-Defined
  • Taper: Linear
  • Resistance: 10k ohm
  • Power Rating: 2W
  • Tolerance: ±3%
  • Actuator Type: Slotted
  • Actuator Length: 0.813" (20.64mm)
  • Actuator Diameter: 0.250" (6.35mm)
  • Turns: 10
  • Rotation: 3600°
  • Mounting Type: Panel Mount
  • Win Source Part Number: 1089695-3549S-1AG-103A
  • Other Names: 3549S-1AA-103A, 3549S-1AA-103B, and 3549S-1AC-103B
