Same model may have multiple batches, images only for reference.

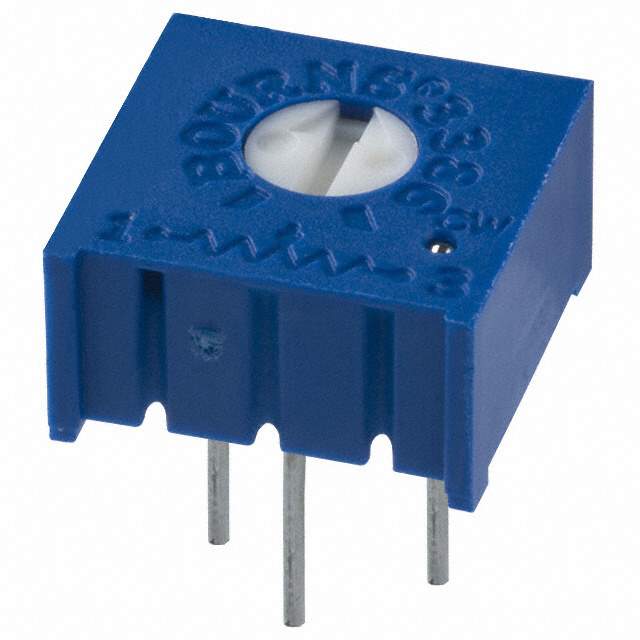

3386P-1-105LF Real Image
Same model may have multiple batches, images only for reference.

3386P-1-105LF

Part No 3386P-1-105LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.5W PC PIN
Datasheet
3386P-1-105LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube/Rail
Status Active
Resistance (Ohms) 1M
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Dimension Square - 0.375" x 0.375" Face x 0.190" H (9.53mm x 9.53mm x 4.83mm)
Win Source Part Number 137148-3386P-1-105LF
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3386P-1-105LF CAD Model

Description

Product Overview

The 3386P-1-105LF features a 1M ohm resistance, making it suitable for high-resistance control applications with precise adjustability.

Features and Benefits

  • High Resistance Value: Ideal for applications requiring significant resistance.
  • Minimal Drift: Provides stable performance over time.
  • Easy Handling: Clear markings facilitate quick installation.

Applications

  • High-impedance DC circuits
  • Filter network optimization
  • Controlled feedback loops
  • Scientific instrumentation

Additional Details

This potentiometer is a part of the 3386P series, respected for precision and durability. It's RoHS compliant and features a user-friendly interface for seamless integration.
