Same model may have multiple batches, images only for reference.

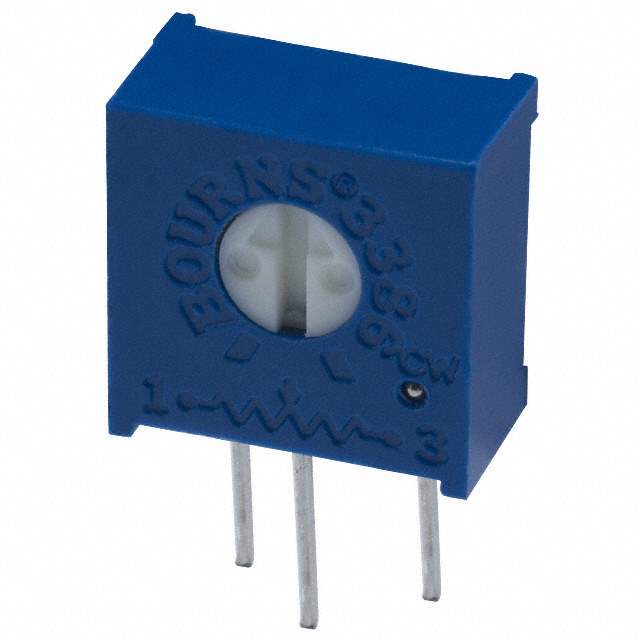

3386H-1-501LF Real Image
Same model may have multiple batches, images only for reference.

3386H-1-501LF

Part No 3386H-1-501LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.5W PC PIN
Datasheet
3386H-1-501LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3386 - Sealed
Packaging Tube
Resistance (Ohms) 500
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Square - 0.375" x 0.375" Face x 0.375" H (9.53mm x 9.53mm x 9.53mm)
Win Source Part Number 763310-3386H-1-501LF
Popularity Medium
Supply and Demand Status Limited
Family Name 3386
Introduction Date June 20, 2000
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3386H-1-501LF CAD Model

Description

The Bourns Inc. 763310-3386H-1-501LF is a trimpot 3386 - sealed series resistor with a tube packaging and PC pins termination style. It has a tolerance of ±10% and a temperature coefficient of ±100ppm/°C.

  • Power: 0.5W, 1/2W
  • Resistance: 500 ohms
  • Turns: 1
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Dimension: Square - 0.375" x 0.375" Face x 0.375" H (9.53mm x 9.53mm x 9.53mm)
