Same model may have multiple batches, images only for reference.

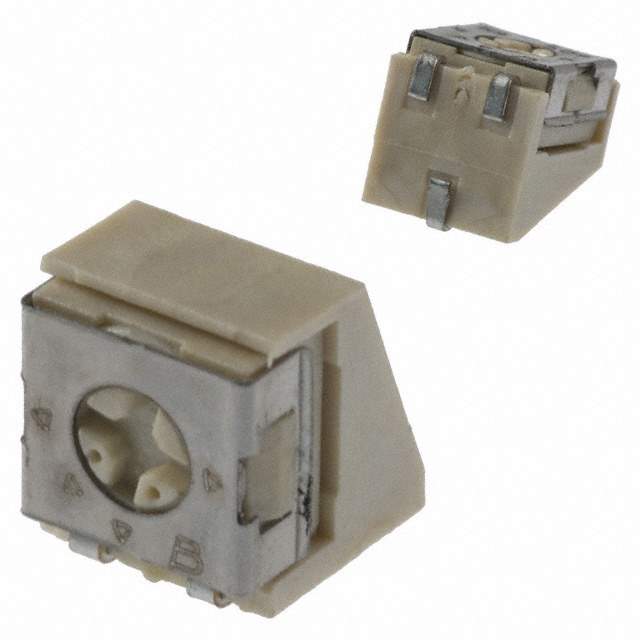

3314Z-1-503E Real Image
Same model may have multiple batches, images only for reference.

3314Z-1-503E

Part No 3314Z-1-503E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Featured Products Bulletin | TRIMMER 50KOHM 0.25W J LEAD SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel
Resistance 50 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style J Lead
Parts Dimension Square - 0.219" x 0.197" Face x 0.227" H (5.56mm x 5.01mm x 5.76mm)
Family Part Number 3314Z
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128214-3314Z-1-503E
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3314Z-1-503E CAD Model

Description

The Bourns Inc. 3314Z-1-503E is a potentiometer that has a resistance of 50 kOhms and a tolerance of ±20%.

  • Resistance: 50 kOhms
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Suitable For: Variable resistor applications
  • Supply and Demand Status: Limited
  • Packaging: Reel
  • Design: Designed to provide superior performance and long-lasting durability, making it an ideal choice for a wide range of electronic applications.
