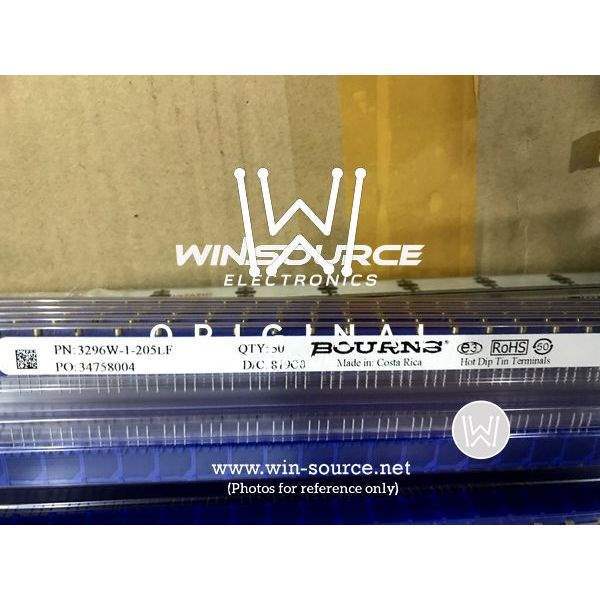

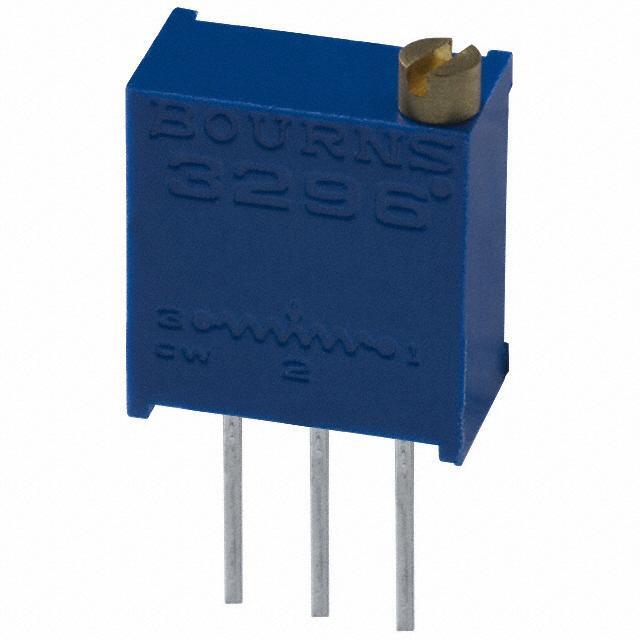

3296W-1-205LF Bourns Inc. 3296W-1-205LF Real Image 3296W-1-205LF label picture
Same model may have multiple batches, images only for reference.
3296W-1-205LF Bourns Inc. 3296W-1-205LF Real Image 3296W-1-205LF label picture
3296W-1-205LF Bourns Inc. 3296W-1-205LF Real Image 3296W-1-205LF label picture
Same model may have multiple batches, images only for reference.

3296W-1-205LF

Part No 3296W-1-205LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 2M OHM 0.5W PC PIN / Res Cermet Trimmer 2M Ohm 10% 0.5W(1/2W) 25(Elec)Turn 2.19mm (9.53 X 4.83 X 11.55mm) Pin Thru-Hole Tube
Datasheet
3296W-1-205LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube/Rail
Status Active
Resistance (Ohms) 2M
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.375" x 0.190" Face x 0.395" H (9.53mm x 4.83mm x 10.03mm)
Win Source Part Number 051872-3296W-1-205LF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 3296
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin CostaRica
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 3296W-1-205LF CAD Model

Description

Product Description

The 3296W-1-205LF potentiometer is engineered for precision tuning in electronic applications, providing excellent durability and reliability for exact resistance settings.

Features and Benefits

  • Resistance: 2M Ohms
  • Tolerance: ±10%
  • Power Rating: 0.5W
  • Enhanced precision for meticulous adjustments
  • Resilient construction for long-term use

Applications

  • Medical instrumentation
  • Sensor calibration
  • Analog circuit design

Additional Details

The 3296W-1-205LF's precision and stability make it indispensable for precise customization in a range of devices. This component stands up to the rigorous demands of professional-grade equipment.
