Same model may have multiple batches, images only for reference.

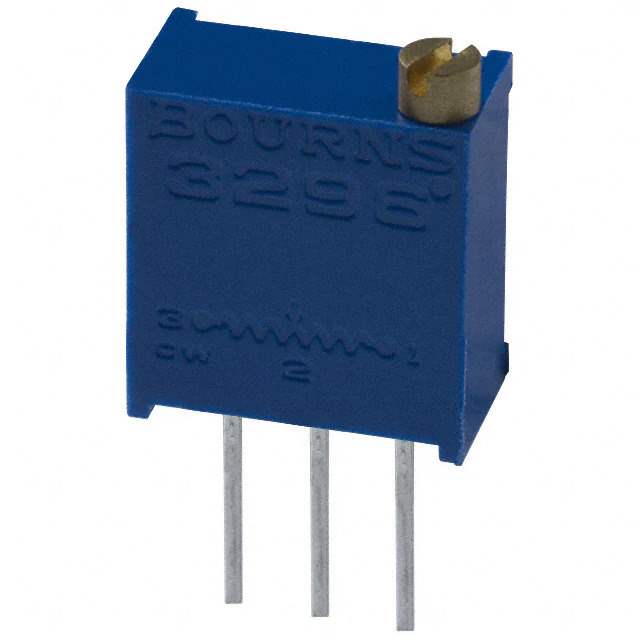

3296W-1-205 Real Image
Same model may have multiple batches, images only for reference.

3296W-1-205

Part No 3296W-1-205
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 2M OHM 0.5W PC PIN TOP / 2 MOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment
Datasheet
3296W-1-205 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3296 - Sealed
Package Tube
Product Status Active
Resistance 2 MOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm)
Base Product Number 3296W
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 906563-3296W-1-205
Ultra Librarian 3D Model Ultra Librarian 3296W-1-205 CAD Model

Description

The Trimpot® 3296 is a sealed potentiometer with PC pins as the termination style.

  • Function: variable resistor commonly used for circuit adjustment and calibration
  • Size: 0.375" x 0.190" face (9.53mm x 4.83mm)
  • Power Rating: 0.5W (1/2W)
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 25 turns
  • Adjustment: top adjustment
  • Resistive Material: cermet
  • Resistance: 2 MOhms
  • Mounting: through-hole mounting
  • Status: active product
  • Manufacturer: Bourns Inc.
  • Category: potentiometers, variable resistors - trimmer potentiometers
