Same model may have multiple batches, images only for reference.

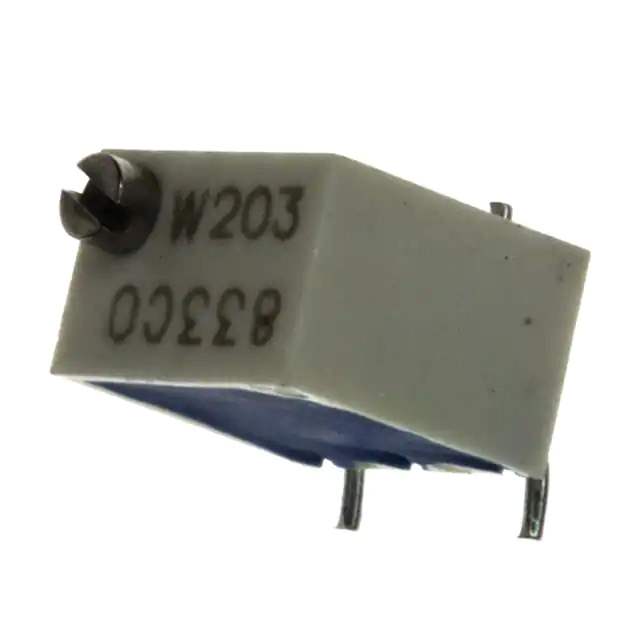

3269W-1-504G Real Image
Same model may have multiple batches, images only for reference.

3269W-1-504G

Part No 3269W-1-504G
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.25W GW TOP
Datasheet
3269W-1-504G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3269 - Sealed
Package Tape & Reel
Product Status Active
Resistance 500 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style Gull Wing
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3269W
Standard Package 500 pcs
MSL Level 2 (1 Year)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855655-3269W-1-504G
Ultra Librarian 3D Model Ultra Librarian 3269W-1-504G CAD Model

Description

The 855655-3269W-1-504G is a trimmer potentiometer from the Trimpot® 3269 - Sealed series.

  • Termination Style: Gull-wing
  • Package: Tape and reel
  • Size: Rectangular, with dimensions of 0.250" x 0.170" face (6.35mm x 4.32mm)
  • Standard Package: 500 pieces
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 12 turns
  • Resistive Material: Cermet
  • Resistance: 500 kOhms
  • Mounting: Surface Mountable
  • Operating Temperature: -55°C to 125°C
  • Status: Active Product
  • REACH: Affected
  • Manufacturer: Bourns Inc.
