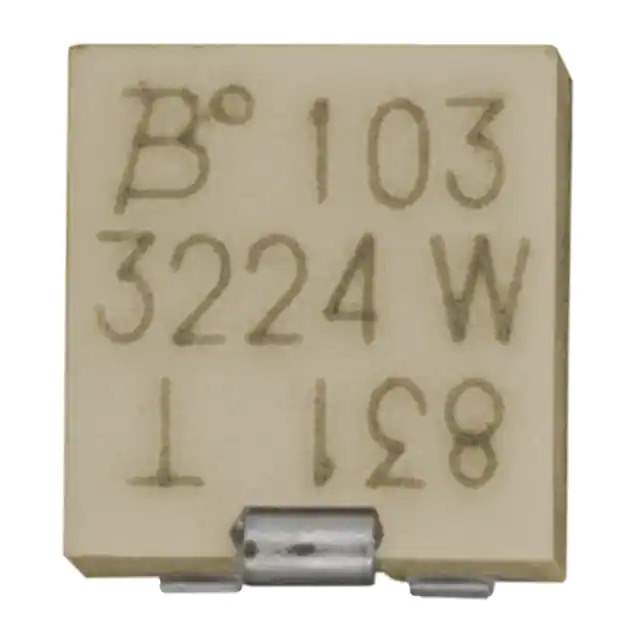

3224W-1-205E Real Image
Same model may have multiple batches, images only for reference.

3224W-1-205E

Part No 3224W-1-205E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 2M OHM 0.25W J LEAD TOP / 2 MOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Datasheet
3224W-1-205E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3224 - Sealed
Package Tape & Reel
Product Status Active
Resistance 2 MOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Base Product Number 3224W
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855643-3224W-1-205E
Ultra Librarian 3D Model Ultra Librarian 3224W-1-205E CAD Model

Description

The 3224W-1-205E is a top adjustment trimmer potentiometer from Bourns Inc.

  • Series: Trimpot® 3224 - Sealed
  • Resistance: 2 MOhms
  • Tolerance: ±10%
  • Power Rating: 0.25W (1/4W)
  • Turns: 12 Turns
  • Application: Surface Mount Applications
  • Shape: Rectangular
  • Size: 0.189" x 0.138" face (4.80mm x 3.50mm)
  • Temperature Range: -55°C to 125°C
  • Status: Active product
  • REACH: Affected
