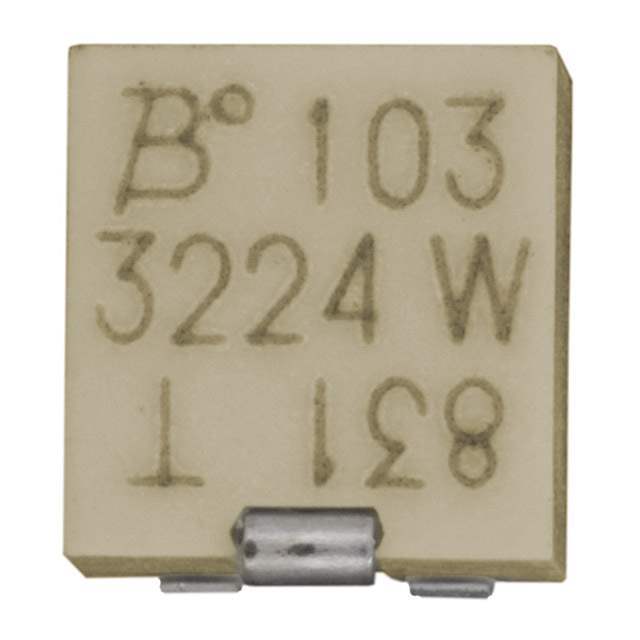

3224W-1-102G Bourns Inc.
Same model may have multiple batches, images only for reference.

3224W-1-102G

Part No 3224W-1-102G
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.25W J LEAD TOP
Datasheet
3224W-1-102G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors >Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Resistance (Ohms) 1 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12.0
Adjustment Type Top Adjustment
Ultra Librarian 3D Model Ultra Librarian 3224W-1-102G CAD Model

Description

  • Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
  • Halogen free with date code 114
  • Sealed to withstand board wash processing
  • Pick and place centering design, with flush adjustment
  • 4mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint
  • Low CRV - 1 %
