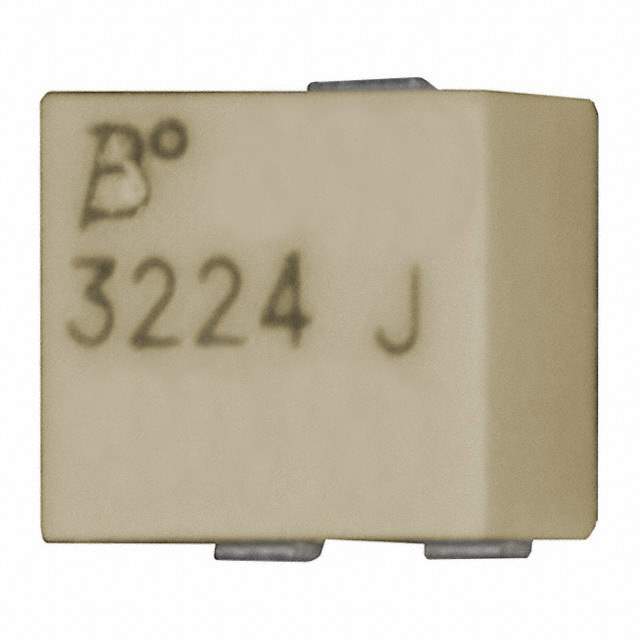

3224J-1-504E Bourns Inc. 3224J-1-504E Real Image 3224J-1-504E real image
Same model may have multiple batches, images only for reference.
3224J-1-504E Bourns Inc. 3224J-1-504E Real Image 3224J-1-504E real image
3224J-1-504E Bourns Inc. 3224J-1-504E Real Image 3224J-1-504E real image
Same model may have multiple batches, images only for reference.

3224J-1-504E

Part No 3224J-1-504E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.25W J LEAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel
Resistance 500 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style J Lead
Parts Dimension Rectangular - 0.181" x 0.138" Face x 0.146" H (4.60mm x 3.50mm x 3.71mm)
Family Part Number 3224J
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 717225-3224J-1-504E
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3224J-1-504E CAD Model

Description

The Bourns Inc. Potentiometer, Variable Resistor is a high-quality electronic component that comes with a resistance of 500 kOhms.

  • Resistive Material: cermet
  • Number of Turns: 12
  • Adjustment Feature: side adjustment
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Mounting Style: SMD
  • Termination Style: J Lead
  • Packaging: reel
  • Shape: rectangular
  • Dimensions: 0.181" x 0.138" Face x 0.146" H (4.60mm x 3.50mm x 3.71mm)
  • Category: Potentiometers and Variable Resistors
