Same model may have multiple batches, images only for reference.

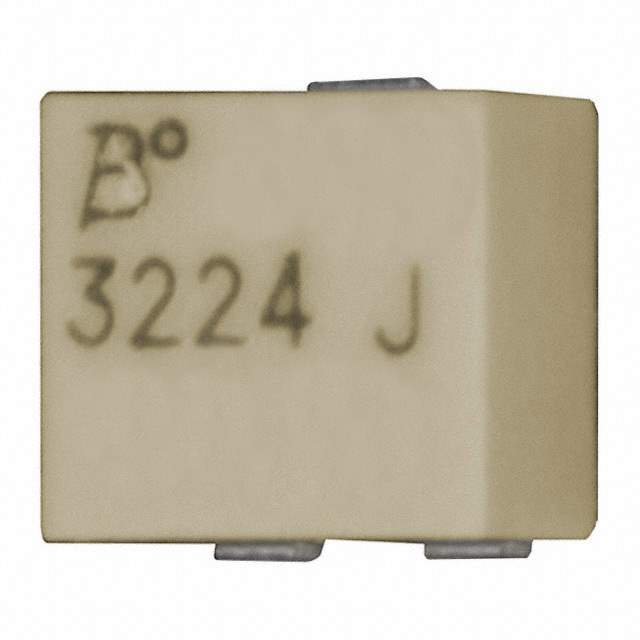

3224J-1-201E Real Image
Same model may have multiple batches, images only for reference.

3224J-1-201E

Part No 3224J-1-201E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 0.25W SMD
Datasheet
3224J-1-201E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 200
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.181" x 0.138" Face x 0.146" H (4.60mm x 3.50mm x 3.71mm)
Win Source Part Number 006033-3224J-1-201E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3224J-1-201E CAD Model

Description

3224J-1-201E - High Precision Trimmer Potentiometer

The 3224J-1-201E is a specialized trimmer potentiometer offering a resistance value of 200 ohms. It is designed for applications requiring precise adjustment and control of electrical parameters.

  • Resistance Range: 0-200 ohms
  • Compact: Suitable for space-constrained environments
  • Precision: Accurate tuning for optimized circuit performance

Applications and Projects:

  • Sensors calibration
  • Instrument tuning devices
  • Voltage regulation circuits
  • Linear position sensing

Features and Benefits:

  • Extended operational reliability
  • Minimal drift ensuring stable performance
  • Customizable for various electronic systems
