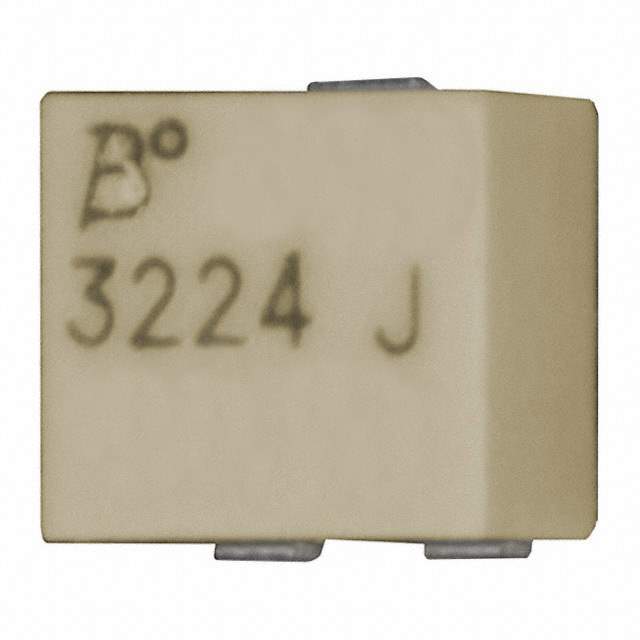

3224J-1-103E

Part No 3224J-1-103E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 10K OHM 0.25W SMD
Datasheet
3224J-1-103E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 10k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.181" x 0.138" Face x 0.146" H (4.60mm x 3.50mm x 3.71mm)
Win Source Part Number 006032-3224J-1-103E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Family Name 3224
Introduction Date November 12, 2001
ECCN EAR99
Country of Origin Costa Rica, Germany, Singapore
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 3224J-1-103E CAD Model

Description

3224J-1-103E - Precision Trimmer Potentiometer

The 3224J-1-103E is a high-quality precision trimmer potentiometer designed for accurate resistance adjustment applications. Featuring a 10k ohm resistance value, this component is ideal for fine-tuning electronic circuits.

  • Resistance Range: 0-10k ohms
  • Frequency Response: Stable and consistent in various environmental conditions
  • Durability: Highly reliable with a robust design

Applications and Projects:

  • Audio control systems
  • Calibration of measurement devices
  • Adjustable power supplies
  • Filter tuning in RF applications

Features and Benefits:

  • Compact design for easy integration into various circuits
  • High precision and reliability
  • Long operational life reducing replacement frequency
