Same model may have multiple batches, images only for reference.

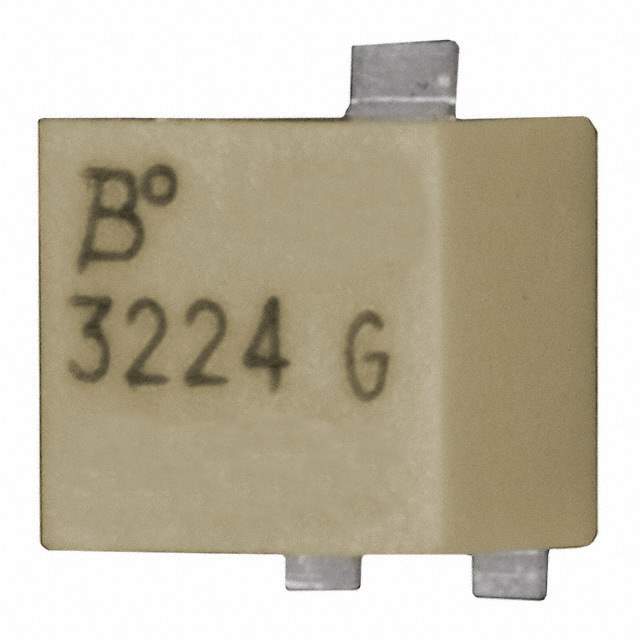

3224G-1-203E Real Image
Same model may have multiple batches, images only for reference.

3224G-1-203E

Part No 3224G-1-203E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.25W GW SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Resistance 20 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style Gull Wing
Dimension Rectangular - 0.181" x 0.138" Face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
Part Number Series 3224G
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811560-3224G-1-203E
Ultra Librarian 3D Model Ultra Librarian 3224G-1-203E CAD Model

Description

The Bourns Inc. 811560-3224G-1-203E is a 20 kOhms, 0.25W, 1/4W cermet trimmer potentiometer with 12 turns.

  • Resistance: 20 kOhms
  • Power Rating: 0.25W, 1/4W
  • Turns: 12
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Shape: Rectangular
  • Dimensions: 0.181" x 0.138" face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
  • Termination Style: Gull wing
  • Mounting Type: SMD
  • Packaging: Reel
