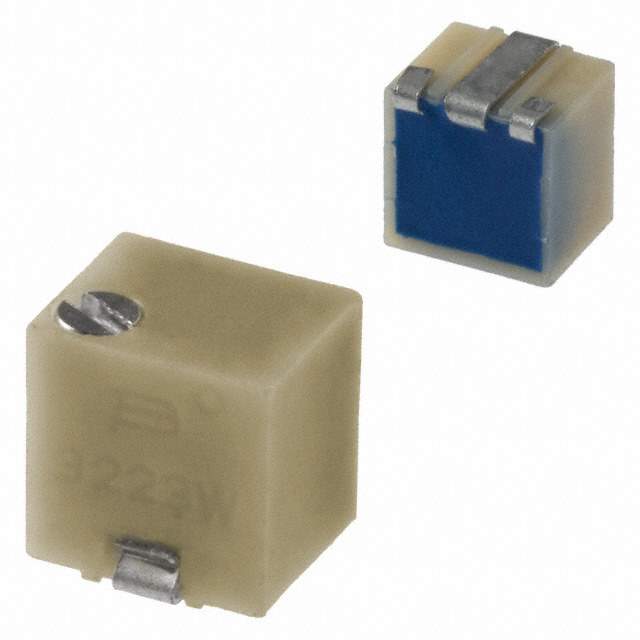

3223W-1-205E Real Image
Same model may have multiple batches, images only for reference.

3223W-1-205E

Part No 3223W-1-205E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description 3 mm SMD Trimpot® Trimming Potentiometer | TRIMMER 2M OHM 0.125W J LEAD TOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel
Resistance 2 MOhms
Power (W) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style J Lead
Parts Dimension Rectangular - 0.154" x 0.125" Face x 0.164" H (3.90mm x 3.18mm x 4.16mm)
Family Part Number 3223W
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128119-3223W-1-205E
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3223W-1-205E CAD Model

Description

The Bourns Inc. 557149 is a potentiometer that comes in a 3223W family part number.

  • Family Part Number: 3223W
  • Termination Style: J lead
  • Mounting Style: SMD
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 11
  • Adjustment: Top adjustable
  • Resistive Material: Cermet
  • Resistance: 2 MOhms
  • Power: 0.125W, 1/8W
  • Supply and Demand Status: Limited
  • Package: Rectangular package of 0.154" x 0.125" face x 0.164" H (3.90mm x 3.18mm x 4.16mm)
  • Manufacturer: Bourns Inc.
  • Suitable for: Various applications
