Same model may have multiple batches, images only for reference.

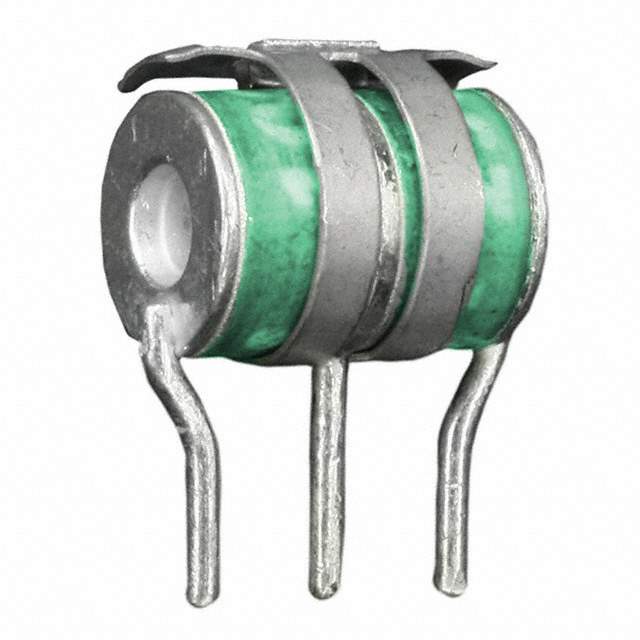

2026-09-C2F Real Image
Same model may have multiple batches, images only for reference.

2026-09-C2F

Part No 2026-09-C2F
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description 3-Pole Gas Discharge Tube | GDT 90V 20% 20KA T/H FAIL SHORT
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Tube
Voltage - DC Spark Over (Nom) 90V
Impulse Discharge Current (8/20μs) 20000A (20kA)
Tolerance ±20%
Number of Poles 3
Fail Short Yes
Mounting Style Through Hole
Manufacturer Package Axial Cylinder, 3 Lead (Radial Bend)
Family Part Number 2026
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1122860-2026-09-C2F
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2026-09-C2F CAD Model

Description

The 2026-09-C2F is a circuit protection device manufactured by Bourns Inc.

  • Package: Tube
  • Mounting: Through-Hole
  • Voltage DC Spark Over (Nom): 90V
  • Impulse Discharge Current (8/20μs): 20000A (20kA)
  • Tolerance: ±20%
  • Poles: 3
  • Failure Mode: Fails Short
  • Package: Axial Cylinder, Three-Lead (Radial Bend)
  • Halogen-Free: Yes
  • Popularity: Medium
  • Supply and Demand Status: Limited
