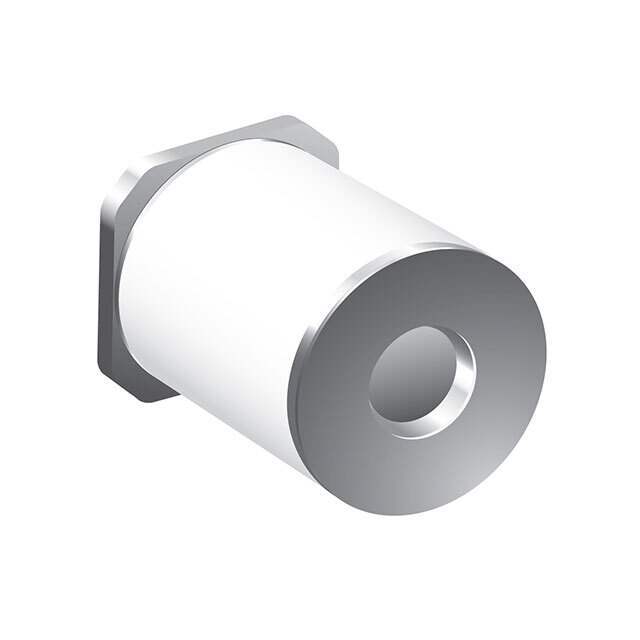

2003-07-SM-RPLF Bourns Inc.
Same model may have multiple batches, images only for reference.

2003-07-SM-RPLF

Part No 2003-07-SM-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 75V 1KA 2 POLE SURFACE MOUNT
Datasheet
2003-07-SM-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310268-2003-07-SM-RPLF
Category Circuit Protection >Gas Discharge Tube Arresters (GDT)
Manufacturer Bourns Inc.
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Voltage - DC Spark Over (Nom) 75 V
Impulse Discharge Current (8/20µs) 1000A (1kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 2003-07-SM-RPLF CAD Model

Description

  • Leadless, surface mount for economical assembly
  • Compact mini-size
  • Low capacitance and insertion loss
  • RoHS compliant
