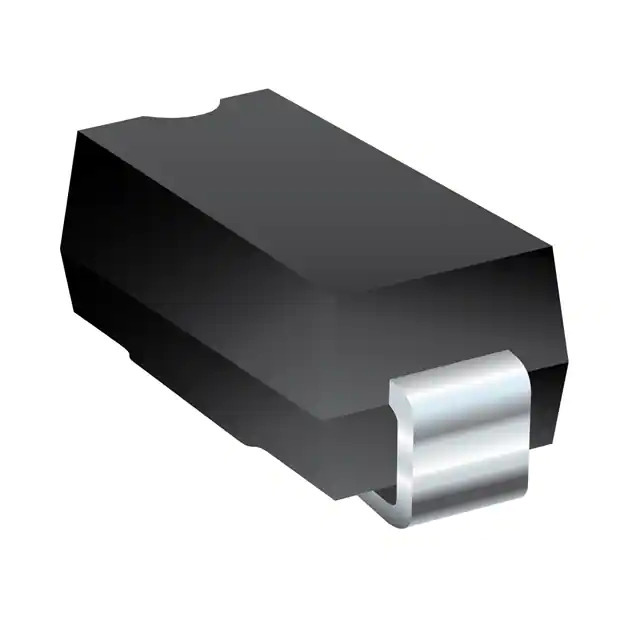

Same model may have multiple batches, images only for reference.

1.5SMBJ54A

Name: 1.5SMBJ54A
Brand: Bourns Inc.
SKU: 1362196
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1.5SMBJ54A
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	DIO TVS VRWM 54V 1500W UNIDIR SM / 87.1V Clamp 17.3A Ipp Tvs Diode Surface Mount SMB (DO-214AA)
Datasheet	1.5SMBJ54A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Bourns Inc.
Series	Automotive, AEC-Q101, 1.5SMBJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	54V
Voltage - Breakdown (Min)	60V
Voltage - Clamping (Max) @ Ipp	87.1V
Current - Peak Pulse (10/1000µs)	17.3A
Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB (DO-214AA)
Base Product Number	1.5SMBJ
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362196-1.5SMBJ54A
Ultra Librarian 3D Model	Ultra Librarian 1.5SMBJ54A CAD Model

Description

The 1.5SMBJ54A is a surface mount TVS diode from Bourns Inc.

Series: 1.5SMBJ
Application: General Purpose
Operating Temperature: -55°C to 150°C (TJ)
Type: Zener
Reverse Standoff Voltage: 54V
Breakdown Voltage: 60V
Clamping Voltage @ Peak Pulse Current (Ipp): 87.1V
Peak Pulse Power: 1500W (1.5kW)
Peak Pulse Current: 17.3A (10/1000µs)
Mounting Type: Surface Mountable
Package: DO-214AA, SMB
Channel: Single Unidirectional
Packaging: Tape & Reel
Product Status: Active
REACH: Affected
