Same model may have multiple batches, images only for reference.

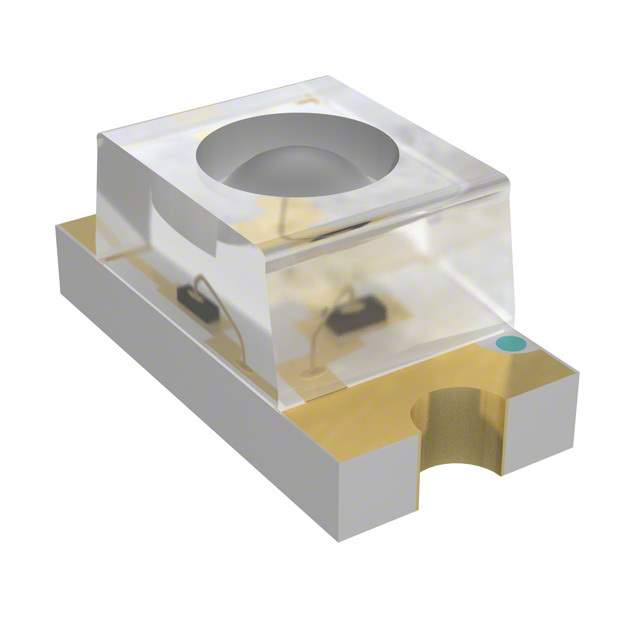

SM1206HC-IL Real Image
Same model may have multiple batches, images only for reference.

SM1206HC-IL

Part No SM1206HC-IL
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 1206 SMD / Red 643nm LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet
SM1206HC-IL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 45mcd
Lens Style Round with Flat Top
Lens Size 1.10mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Dominant 643nm
Wavelength - Peak 660nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.40mm
Base Product Number SM1206
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242247-SM1206HC-IL
Ultra Librarian 3D Model Ultra Librarian SM1206HC-IL CAD Model

Description

The Bivar Inc. SM1206HC-IL is an optoelectronics LED indication - discrete electronic component manufactured by.

  • Standard Package: 3,000
  • Viewing Angle: 140 degrees
  • Lens Style: Round with a flat top
  • Configuration: Standard
  • Forward Voltage: 2V
  • Current: 20mA
  • Wavelength-Dominant: 643nm
  • Wavelength-Peak: 660nm
  • Height: 1.40mm
  • Length: 3.20mm
  • Lens Size: 1.10mm diameter
