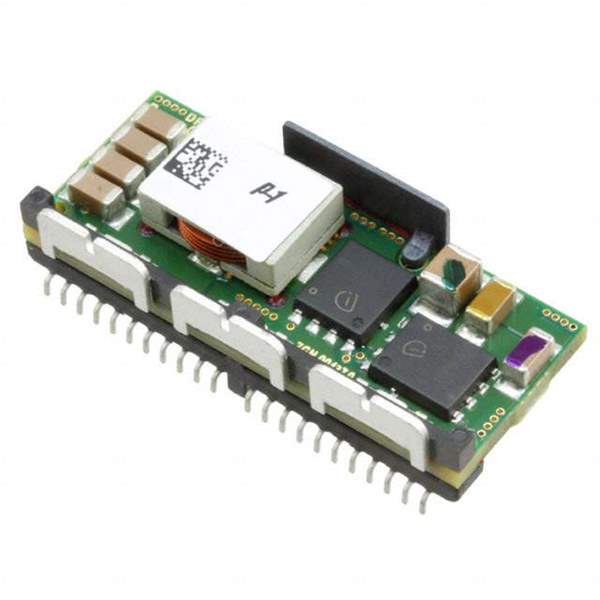

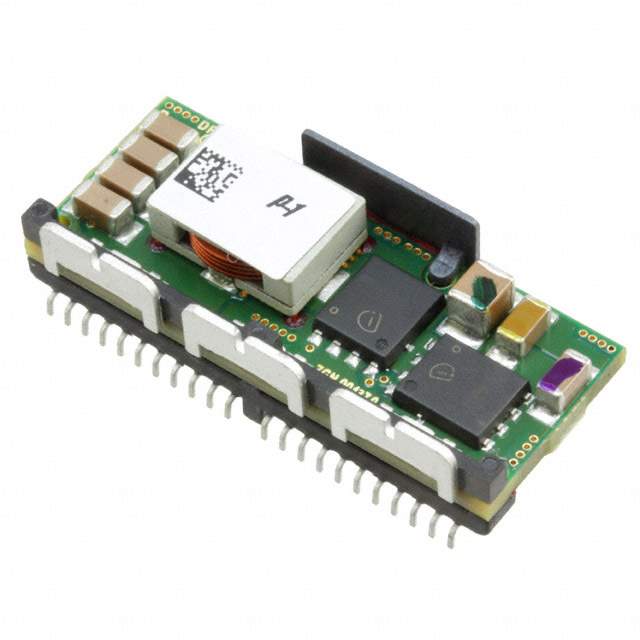

Same model may have multiple batches, images only for reference.

DP7120G-R100

Name: DP7120G-R100
Brand: Bel Power Solutions
SKU: 1005491
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DP7120G-R100
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.7-5.5V / Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 20A 8V - 14V Input
Datasheet	DP7120G-R100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Bel Power Solutions
Series	dPWER®
Package	Tape & Reel
Type	Non-Isolated PoL Module, Digital
Number of Outputs	1
Voltage - Input (Min)	8V
Voltage - Input (Max)	14V
Voltage - Output 1	0.7 ~ 5.5V
Current - Output (Max)	20A
Applications	ITE (Commercial)
Features	Digital, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	Module
Dimension	1.26" L x 0.55" W x 0.31" H (32.0mm x 14.0mm x 8.0mm)
Base Product Number	DP7120
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	179-2574-6,DP7120-R100,179-2574-1,179-2574-2,2266-DP7120G-R100,DP7120-LN
Standard Package	100
Win Source Part Number	1005491-DP7120G-R100
Ultra Librarian 3D Model	Ultra Librarian DP7120G-R100 CAD Model

Alternative Products

Description

The DP7120G-R100 is a non-isolated PoL module designed for DC-DC conversion in ITE (Commercial) applications.

Type: Non-Isolated PoL Module
Application: DC-DC Conversion in ITE (Commercial)
Control/Protection: Digital Control, OCP, OTP, OVP, UVLO
Maximum Output Current: 20A
Input Voltage Range: 8V to 14V
Output Voltage: Adjustable from 0.7V to 5.5V
Package: Tape and Reel
Dimension: 1.26" L x 0.55" W x 0.31" H (32.0mm x 14.0mm x 8.0mm)
