Same model may have multiple batches, images only for reference.

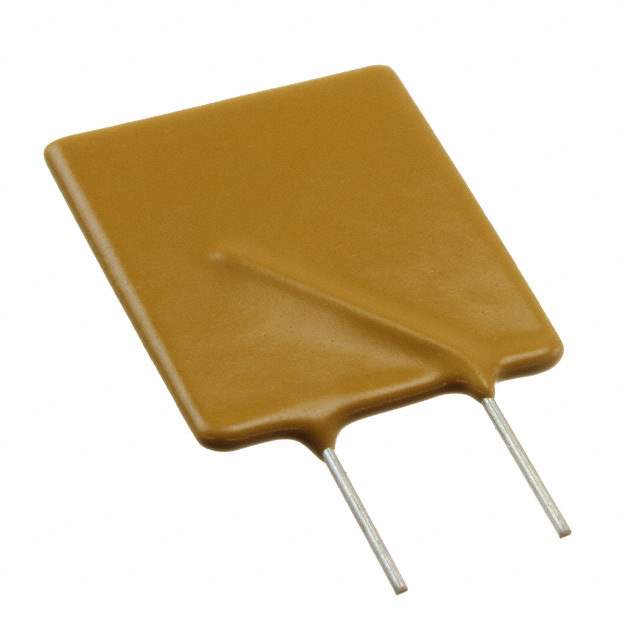

0ZRP0500FF1A Real Image
Same model may have multiple batches, images only for reference.

0ZRP0500FF1A

Part No 0ZRP0500FF1A
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 5A RADIAL / Polymeric PTC Resettable Fuse 60V 5 A Ih Through Hole Radial, Disc
Datasheet
0ZRP0500FF1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Manufacturer Bel Fuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 60V
Current - Max 40 A
Current - Hold (Ih) (Max) 5 A
Current - Trip (It) 10 A
Time to Trip 28 s
Resistance - Initial (Ri) (Min) 12 mOhms
Resistance - Post Trip (R1) (Max) 50 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Through Hole
Case / Package Radial, Disc
Size / Dimension 0.949" L x 0.142" W (24.10mm x 3.60mm)
Height - Seated (Max) 1.142" (29.00mm)
Lead Spacing 0.402" (10.20mm)
Approval Agency UL
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number 507-2415
Standard Package 800
Win Source Part Number 1334745-0ZRP0500FF1A
Ultra Librarian 3D Model Ultra Librarian 0ZRP0500FF1A CAD Model

Description

The 1334745-0ZRP0500FF1A is a PTC resettable fuse product from Bel Fuse Inc.

  • Packaging: Bulk
  • Type: Polymeric
  • Case/Package: Radial, Disc
  • Size/Dimension: 0.949" L x 0.142" W (24.10mm x 3.60mm)
  • Height-Seated (Max): 1.142" (29.00mm)
  • Voltage-Max: 60V
  • Current-Max: 40A
  • Current-Hold (Ih): 5A
  • Current-Trip (It): 10A
  • Time to Trip: 28s
  • Temperature Range: -40°C ~ 85°C
  • Mounting Type: Through-Hole
  • Rating: AEC-Q200
  • Approval: UL
