Same model may have multiple batches, images only for reference.

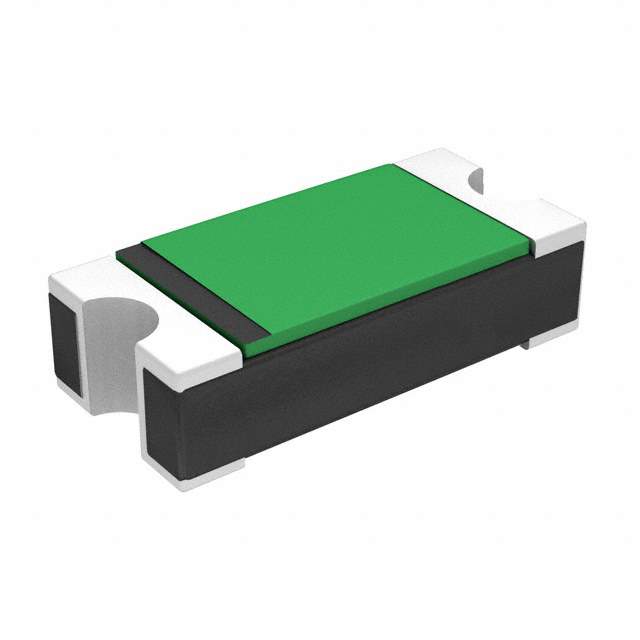

0ZCM0010FF2G Real Image
Same model may have multiple batches, images only for reference.

0ZCM0010FF2G

Part No 0ZCM0010FF2G
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 15V 100MA 0603 / Polymeric PTC Resettable Fuse 15V 100 mA Ih Surface Mount 0603 (1608 Metric), Concave
Datasheet
0ZCM0010FF2G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Type Polymeric
Voltage - Max 15V
Current - Max 40 A
Current - Hold (Ih) (Max) 100 mA
Current - Trip (It) 250 mA
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 900 mOhms
Resistance - Post Trip (R1) (Max) 8 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 0603 (1608 Metric), Concave
Size / Dimension 0.063" L x 0.029" W (1.60mm x 0.73mm)
Thickness (Max) 0.030" (0.75mm)
Approval Agency cURus, TUV
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number 507-1818-6,507-1818-2,507-1818-1
Standard Package 4,000
Win Source Part Number 1334696-0ZCM0010FF2G
Ultra Librarian 3D Model Ultra Librarian 0ZCM0010FF2G CAD Model

Description

The 1334696-0ZCM0010FF2G PTC resettable fuse is a polymeric type fuse used in circuit protection.

  • Product Number: 1334696-0ZCM0010FF2G
  • Type: Polymeric PTC resettable fuse
  • Voltage Rating: 15V
  • Current Rating: 40A
  • Current Hold (Ih): 100mA
  • Current Trip (It): 250mA
  • Time to Trip: 100ms
  • Mounting: Surface mountable
  • Manufacturer: Bel Fuse Inc.
  • Standard Package: 4,000
  • Packaging: Reel
  • ECCN: EAR99
  • REACH: Compliant
