Part No 0680L9120-05
Manufacturer Bel Fuse Inc.
Catalog Fuses

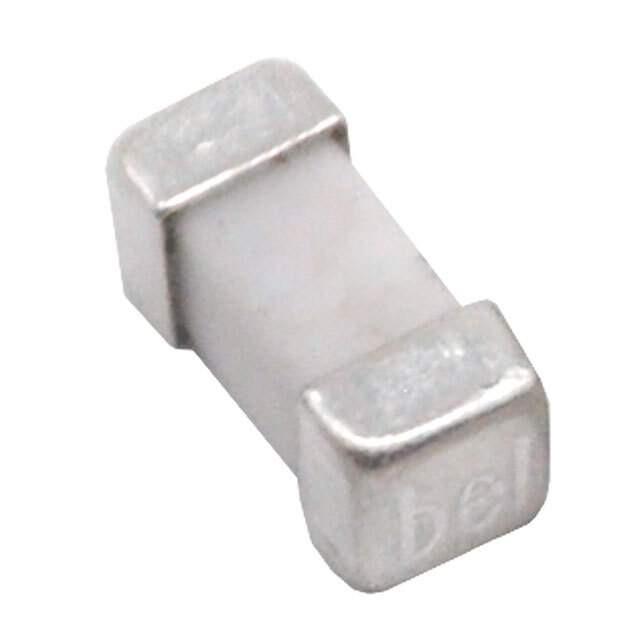

Description FUSE BRD MNT 12A 50VAC 75VDC SMD / 12 A 50 V AC 75 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
0680L9120-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bel Fuse Inc.
Series 0680L
Package Tape & Reel
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 12 A
Voltage Rating - AC 50 V
Voltage Rating - DC 75 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 500A DC
Melting I2t 244
Approval Agency AEC-Q200, CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm)
DC Cold Resistance 0.0063 Ohms
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1351855-0680L9120-05
Ultra Librarian 3D Model Ultra Librarian 0680L9120-05 CAD Model

Description

The Bel Fuse Inc. 1167138 is a slow-blow board mount fuse used in circuit protection applications.

  • Voltage Rating: 50 V AC and 75 V DC
  • Breaking Capacity: 100A AC and 500A DC @ rated voltage
  • Mounting Method: surface mount
  • Package: tape and reel
  • Standard Package: 5,000 fuses
  • Approvals: AEC-Q200, CE, cURus
  • REACH Status: REACH unaffected
