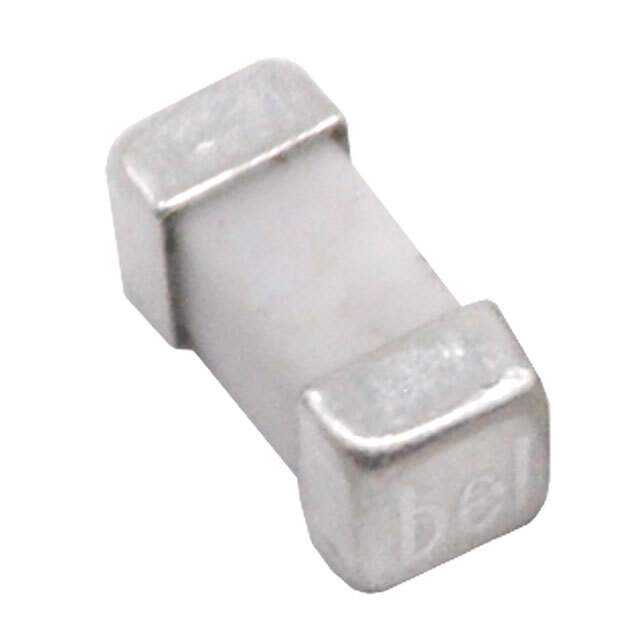

0680L0500-15 Real Image
Same model may have multiple batches, images only for reference.

0680L0500-15

Part No 0680L0500-15
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MT 500MA 125VAC/VDC SMD / 500 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
0680L0500-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bel Fuse Inc.
Series 0680L
Package Tape & Reel
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 50A AC, 100A DC
Melting I2t 0.27
Approval Agency AEC-Q200, CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm)
DC Cold Resistance 0.58 Ohms
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1346900-0680L0500-15
Ultra Librarian 3D Model Ultra Librarian 0680L0500-15 CAD Model

Description

The 0680L0500-15 is a slow-blow fuse in the circuit protection category.

  • Mounting Type: Surface Mount Device (SMD)
  • Package Size: 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm)
  • Current Rating: 500 mA
  • Voltage Rating (AC/DC): 125 V
  • Breaking Capacity @ Rated Voltage: 50A AC / 100A DC
  • Approvals: AEC-Q200, CE, cURus
  • Standard Package: 5,000 units
  • Operating Temperature: -55°C ~ 125°C
