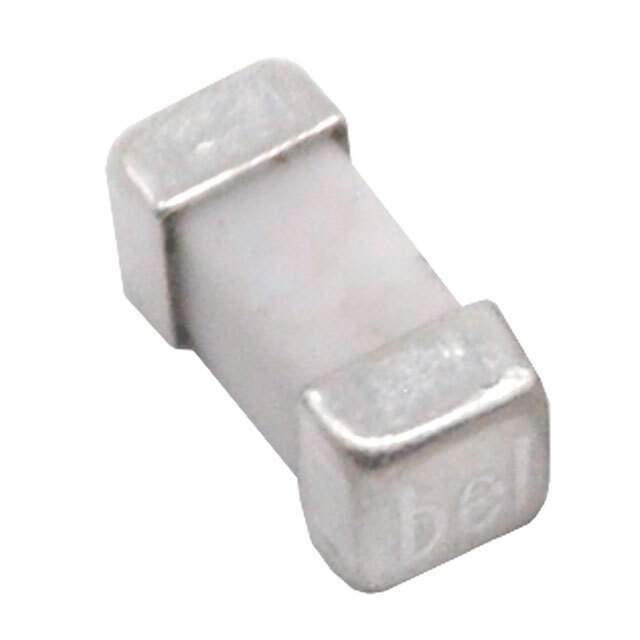

0680L0375-05 Real Image
Same model may have multiple batches, images only for reference.

0680L0375-05

Part No 0680L0375-05
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MT 375MA 125VAC/VDC SMD / 375 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
0680L0375-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bel Fuse Inc.
Series 0680L
Package Tape & Reel
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 375 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 50A AC, 100A DC
Melting I2t 0.14
Approval Agency AEC-Q200, CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm)
DC Cold Resistance 0.93 Ohms
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1336949-0680L0375-05
Ultra Librarian 3D Model Ultra Librarian 0680L0375-05 CAD Model

Description

The Bel Fuse Inc. 1336949-0680L0375-05 is a board mount fuse that falls under the category of circuit protection.

  • Manufacturer: Bel Fuse Inc.
  • Category: circuit protection
  • Series: 0680L
  • Packaging: tape and reel
  • Voltage Rating: 125V AC, 125V DC
  • Response Time: slow blow
  • Breaking Capacity: 50A AC, 100A DC
  • Standard Package: 5,000
  • Mounting Type: surface mountable
  • Operating Temperature: -55°C to 125°C
