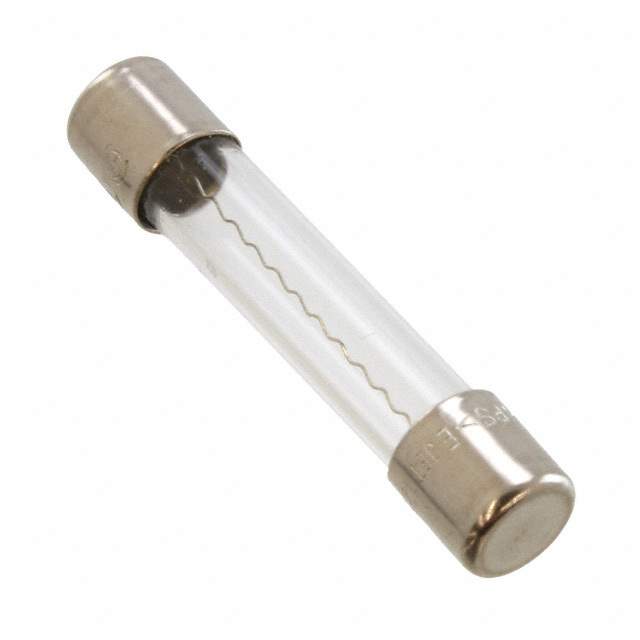

3AG 8-R Real Image
Same model may have multiple batches, images only for reference.

3AG 8-R

Part No 3AG 8-R
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE GLASS 8A 250VAC 3AB 3AG / 8 A 250 V AC DC Fuse Cartridge, Glass Holder 3AB, 3AG, 1/4" x 1-1/4"
Datasheet
3AG 8-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series 3AG
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 8 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 200A
Melting I2t 184
Approval Agency CE, CSA, cURus, PSE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.252" L (6.35mm x 31.80mm)
DC Cold Resistance 0.01 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Other Names 3AG 8-R-ND,0601R8000-33,3AG8-R,3AG8R,507-1638
Standard Package 1,000
Win Source Part Number 982153-3AG 8-R
Ultra Librarian 3D Model Ultra Librarian 3AG 8-R CAD Model

Description

The Bel Fuse Inc. 3AG 8-R is a cartridge, glass fuse that has a voltage rating - AC of 250 V.

  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 200A
  • Melting I2t: 184
  • DC Cold Resistance: 0.01 Ohms
  • Standard Package: 1,000
  • Mounting Type: Holder
  • Package / Case: 3AB, 3AG, 1/4" x 1-1/4"
  • Operating Temperature Range: -55°C ~ 125°C
  • Current Rating (Amps): 8 A
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.10.0020
  • Other Names: 3AG 8-R-ND, 0601R8000-33, 3AG8-R, 3AG8R, and 507-1638
