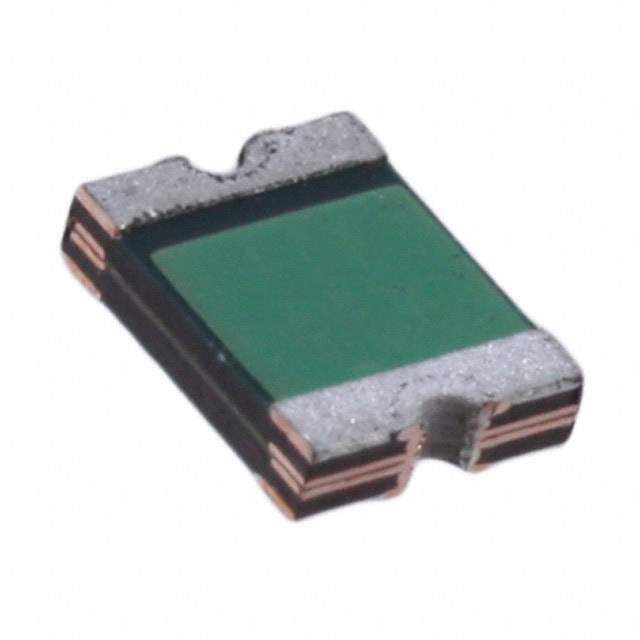

The Bel Fuse Inc. 0ZCH Series is a polymeric PTC resettable fuse that has a voltage - max of 24V and a current - max of 100 A.

• Voltage - Max: 24V
• Current - Max: 100 A
• Current - Hold (Ih) (Max): 750 mA
• Current - Trip (It): 1.5 A
• Time to Trip: 100 ms
• Package / Case: 1210 (3225 Metric), Concave
• Temperature Range - Operating: -40°C ~ 85°C
• Thickness (Max): 0.028" (0.70mm)
• Standard Package: 3,000
• Mounting: SMD (SMT)
• MSL Level: 2A (4 Weeks)
• REACH Status: REACH Unaffected
• HTSUS: 8533.40.8070
• Alternative Parts (Cross-Reference): 0ZCH0075AF2E
• Other Names: 507-1788-6,507-1788-1, and 507-1788-2
