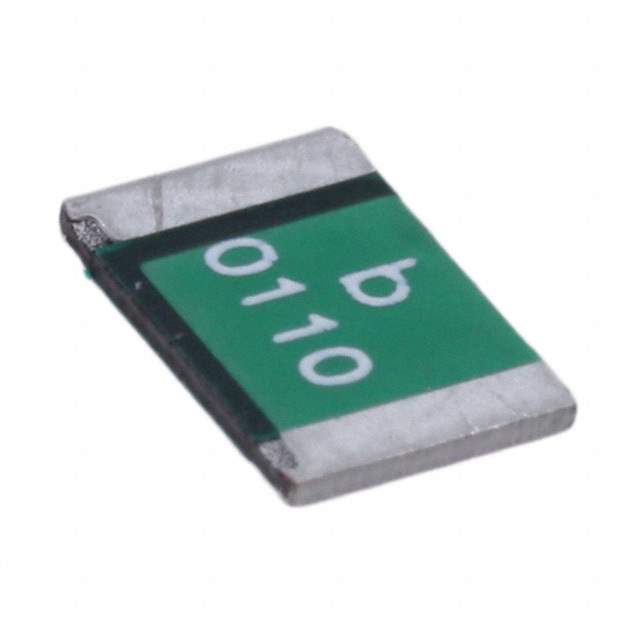

Same model may have multiple batches, images only for reference.

0ZCC0110FF2C

Name: 0ZCC0110FF2C
Brand: Bel Fuse Inc.
SKU: 1150402
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	0ZCC0110FF2C
Manufacturer	Bel Fuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 8V 1.1A 1812 / Polymeric PTC Resettable Fuse 8V 1.1 A Ih Surface Mount 1812 (4532 Metric)
Datasheet	0ZCC0110FF2C Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Bel Fuse Inc.
Series	0ZCC
Package	Tape & Reel
Product Status	Obsolete
Type	Polymeric
Voltage - Max	8V
Current - Max	100 A
Current - Hold (Ih) (Max)	1.1 A
Current - Trip (It)	2.2 A
Time to Trip	300 ms
Resistance - Initial (Ri) (Min)	40 mOhms
Resistance - Post Trip (R1) (Max)	210 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	1812 (4532 Metric)
Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max)	0.022" (0.55mm)
Approval Agency	cURus, TUV
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	507-1363-2,507-1363-1,507-1363-6
Standard Package	2,000
Win Source Part Number	1150402-0ZCC0110FF2C
Ultra Librarian 3D Model	Ultra Librarian 0ZCC0110FF2C CAD Model

Alternative Products

Description

The 0ZCC0110FF2C is a polymeric PTC resettable fuse from Bel Fuse Inc.

Mounting Type: SMD (SMT)
Maximum Thickness: 0.022 inches (0.55mm)
Package/Case: 1812 (4532 Metric)
Voltage Rating: 8V
Maximum Current: 100A
Current Hold (Ih): 1.1A
Current Trip (It): 2.2A
Time to Trip: 300ms
Initial Resistance (Ri): 40 mOhms
Post Trip Resistance (R1): 210 mOhms
Operating Temperature Range: -40°C to 85°C
Product Status: Obsolete
Standard Package: 2,000 units
Approvals: cURus and TUV
